  • #61
    Originally posted by timg View Post
    Have you considered trying to put an A-W intercooler right there at the discharge?

    Tim
    I have this Garrett 3x5x7 core, but it looked like too rare an item to tear up, possibly 1/2 of some twin turbo system. Yes, I'd like to try that.

    1999 GLS MP90 supercharged / 2003 GL MP62 supercharged / 2004 GLS stock
    Magnuson MP90 / TOG's / 3 in. Magnaflow exhaust / MSD ignition / LS1 MAF / Racetronix pump / HP Tuners / TCE 68mm TB / 36 lb Inj
    = Best track time: 12.951 @ 104.48, 1.839 60 ft. (Beech Bend Raceway Park, 11-23-13), 50 Deg. F
    http://www.youtube.com/watch?v=hpVYZPbpPzk

    Comment


    • #62
      Any reason why SC guys tend to do A-W intercoolers more than say a A-A intercooler?

      Got Lope?
      3500 Build, Comp XFI Cam 218/230 .050 dur .570/.568 lift 113LSA
      Fully Balanced, Ported, 3 Angle Valve Job, 65mm TCE TB, S&S Headers.
      Stage-1 Raybestos/Alto 4t60e-HD, EP LSD, 3.69FDR
      12.61@105 Epping NH Oct 2015 Nitrous 100shot (melted plugs) 13.58@98.8 N/A 3200LBS

      Comment


      • #63
        Originally posted by 3400-95-Modified View Post
        Any reason why SC guys tend to do A-W intercoolers more than say a A-A intercooler?
        I didn't know a ton about it so I quickly searched up some Pro's and Con's of a-a and a-w

        http://www.enginebasics.com/Advanced...tercooler.html

        i think the main reason for him would be to use it at the track and throw ice in the A-W for optimal results in cooling the charged air.
        14.63@92.9 -Full LX9 with CAI, 65MM TB, 2.5in DP, Borla Cat-Back, Crappy tires, Quick tune (Dyno Soon)

        Comment


        • #64
          Originally posted by young gun View Post
          I didn't know a ton about it so I quickly searched up some Pro's and Con's of a-a and a-w

          http://www.enginebasics.com/Advanced...tercooler.html

          i think the main reason for him would be to use it at the track and throw ice in the A-W for optimal results in cooling the charged air.
          That makes sense for that application. I just look at all that's involved with a A-W setup and wonder why... Seems way to complicated for some applications. But definitely for a short run drag only car it makes sense because of the limited time the vehicle has air going over an A-A setup.
          Last edited by 3400-95-Modified; 11-05-2012, 12:09 PM.

          Got Lope?
          3500 Build, Comp XFI Cam 218/230 .050 dur .570/.568 lift 113LSA
          Fully Balanced, Ported, 3 Angle Valve Job, 65mm TCE TB, S&S Headers.
          Stage-1 Raybestos/Alto 4t60e-HD, EP LSD, 3.69FDR
          12.61@105 Epping NH Oct 2015 Nitrous 100shot (melted plugs) 13.58@98.8 N/A 3200LBS

          Comment


          • #65
            if i had to guess, with a roots blower, i'd say plumbing issues.
            1995 Monte Carlo LS 3100, 4T60E...for now, future plans include driving it until the wheels fall off!
            Latest nAst1 files here!
            Need a wiring diagram for any GM car or truck from 82-06(and 07-08 cars)? PM me!

            Comment


            • #66
              People say that but there is quite a bit of extra equipment needed to make the A-W setup work, never mind the A-W core itself. I can understand it for the application, but in my mind I would think if you can fit a A-W core, and heat exchanger and all the necessary plumbing for the water lines, tank and pump, you should be able to fit two pipes for a A-A inter cooler. But then again I've never had to try so I may be out in left field LOL

              Got Lope?
              3500 Build, Comp XFI Cam 218/230 .050 dur .570/.568 lift 113LSA
              Fully Balanced, Ported, 3 Angle Valve Job, 65mm TCE TB, S&S Headers.
              Stage-1 Raybestos/Alto 4t60e-HD, EP LSD, 3.69FDR
              12.61@105 Epping NH Oct 2015 Nitrous 100shot (melted plugs) 13.58@98.8 N/A 3200LBS

              Comment


              • #67
                I just want to know when the "kit " is coming out

                Comment


                • #68
                  ^This!!

                  Comment


                  • #69
                    Originally posted by 3400-95-Modified View Post
                    Any reason why SC guys tend to do A-W intercoolers more than say a A-A intercooler?
                    My guess is plenum volume. Having an a2a behind the throttle would increase plenum volume much more then a2w. Since it needs to be plumbed behind the throttle blade and to a place where it can get good ambient air flow.

                    Turbo can intercool ahead of the throttle, making a2w less desirable as it is less efficient cause it is really air to water to air again.

                    Just a guess though...seems logical.
                    Last edited by TGP37; 11-10-2012, 11:43 AM.
                    1996 Grand Prix | 3100v6 L82 | T04E-50 Turbo | Getrag 282 w/ EP LSD | SPEC-3 Clutch

                    Comment


                    • #70
                      Not all SC's have the TB before the blower though but for this type yes your correct.

                      for instance...

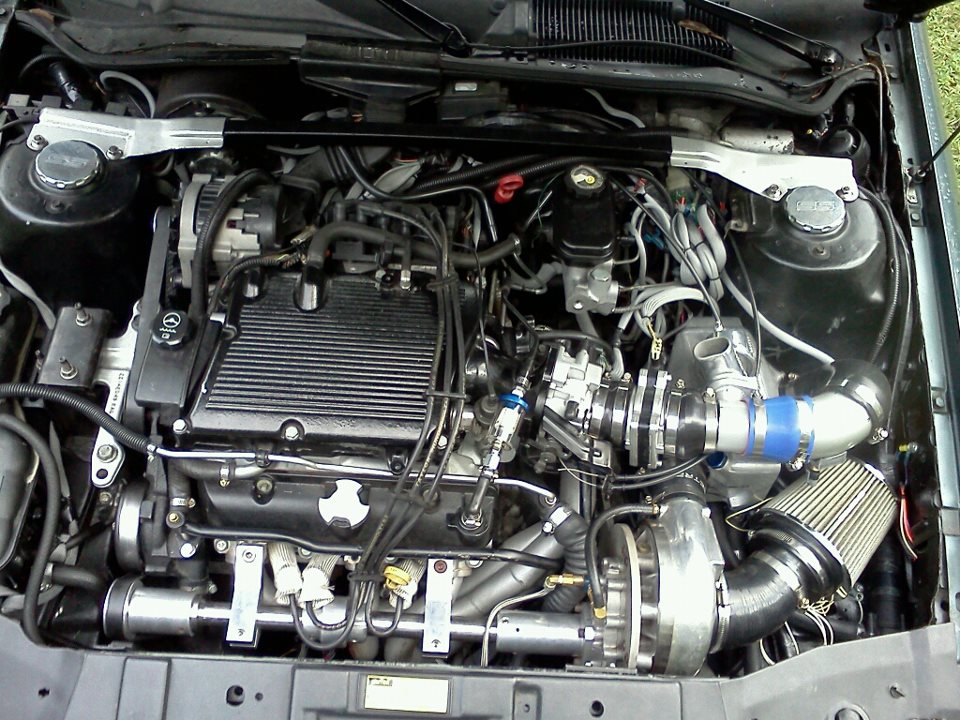

                      Click image for larger version

Name:	en.jpg
Views:	1
Size:	168.3 KB
ID:	377309

                      And this setup has a A/W intercooler and it takes up a lot of space in the bay.

                      Got Lope?
                      3500 Build, Comp XFI Cam 218/230 .050 dur .570/.568 lift 113LSA
                      Fully Balanced, Ported, 3 Angle Valve Job, 65mm TCE TB, S&S Headers.
                      Stage-1 Raybestos/Alto 4t60e-HD, EP LSD, 3.69FDR
                      12.61@105 Epping NH Oct 2015 Nitrous 100shot (melted plugs) 13.58@98.8 N/A 3200LBS

                      Comment


                      • #71
                        I swear, Moses didn't put up with this much blasphemy! heh

                        Anyway, moving on, constructed a new and improved driveshaft mount and installed my straight shot UIM with transition pipe:



                        And got some runs in at Beech Bend Saturday afternoon. Nice 75-degree day, 7.5 inch slicks, bypassed filter. I forgot to have the tank full, it's been over a year away from the track, so it ran out of fuel near the end of track on each run.

                        Last edited by AleroB888; 11-12-2012, 05:15 AM.
                        1999 GLS MP90 supercharged / 2003 GL MP62 supercharged / 2004 GLS stock
                        Magnuson MP90 / TOG's / 3 in. Magnaflow exhaust / MSD ignition / LS1 MAF / Racetronix pump / HP Tuners / TCE 68mm TB / 36 lb Inj
                        = Best track time: 12.951 @ 104.48, 1.839 60 ft. (Beech Bend Raceway Park, 11-23-13), 50 Deg. F
                        http://www.youtube.com/watch?v=hpVYZPbpPzk

                        Comment


                        • #72
                          Originally posted by unchained01 View Post
                          I just want to know when the "kit " is coming out
                          I guess if somebody in the community really had to have a set of castings, I could probably do that, but the mounts are just in the prototype stage. They seem sturdy enough, but who can tell what could happen with severe road use. Now if one of the "Big Three" (ha), WOT-Tech, MMS, or BCC wanted to make and test mounts, that would be great, but they're not that interested in this platform, it would take their time and money. I don't have any way to make precision cuts or obtain good aluminum stock material, or even a welder. I can tell you it's nerve-wracking drilling holes in those castings lol. Also, the case mount system will most likely have to be modded for intercooling.

                          You'd have to get the SC from Magnuson Products, then make the mounts from patterns or pics. And also, a 4-inch notch has to be cut out of the hood bracing. Right now, unmounting of the SC requires removing the inlet casting, 9 bolts, and loosening 3 others. You have to do that to change spark plugs 2 and 4.

                          That being said, the effort is well worth it to me. The car made it a good 180 miles loaded down round trip to the track, got beat on, and ran effortlessly, worn-out engine and all.
                          1999 GLS MP90 supercharged / 2003 GL MP62 supercharged / 2004 GLS stock
                          Magnuson MP90 / TOG's / 3 in. Magnaflow exhaust / MSD ignition / LS1 MAF / Racetronix pump / HP Tuners / TCE 68mm TB / 36 lb Inj
                          = Best track time: 12.951 @ 104.48, 1.839 60 ft. (Beech Bend Raceway Park, 11-23-13), 50 Deg. F
                          http://www.youtube.com/watch?v=hpVYZPbpPzk

                          Comment


                          • #73
                            Originally posted by AleroB888 View Post
                            I swear, Moses didn't put up with this much blasphemy! heh
                            No blasphemy, just trying to figure out why SC guys typically go A/W... that's all. And with a Roots type blower it makes sense because the positive pressure is post TB so plenum volume comes into play, where a centrifugal SC the boost is like a turbo setup.

                            Got Lope?
                            3500 Build, Comp XFI Cam 218/230 .050 dur .570/.568 lift 113LSA
                            Fully Balanced, Ported, 3 Angle Valve Job, 65mm TCE TB, S&S Headers.
                            Stage-1 Raybestos/Alto 4t60e-HD, EP LSD, 3.69FDR
                            12.61@105 Epping NH Oct 2015 Nitrous 100shot (melted plugs) 13.58@98.8 N/A 3200LBS

                            Comment


                            • #74
                              Based on what I understand, SC's produce heat sooner and more of it than a TC. So for a drag car with a SC, it would be faster to cool and prevent majority of the heat soaking to occur. However, with all the types of liquid injections available, an A2W is really not needed anymore (meth/water/alky) .
                              Lifting my front wheels, one jack at a time.

                              Comment


                              • #75
                                not to drag it on but.....a2w are less efficient then a2a per cross section area. Because an a2w is actually two stage heat transfer. Air to water then back to air again. Makes it less efficient then regular air to air. That and the water can become heat soaked, where the a2a does not.

                                I am pretty sure water takes longer to heat up then air does, making a2w slower at cooling the air charge. That I'm not 100% on.

                                With the complex nature of plumbing a2w, the efficiency drop, heat soak issues......a2a is far better. Unless you plan to ice the cooler or cryo spray, even then a2a can do that too. The advantage is having far less volume needed to cool X amount versus a2a.

                                That's my take on it, not going to clutter up the thread.
