manifolds pictures.

[ericjon262]

I'd like to see pictures of all the stock 60* manifolds, esp the gen III componets, I'll post the two that I have, the fiero, and the 06 G6 LX9 manifolds.

First, the fiero,





and the G6

[robertisaar]

not that it's 100% foolproof, but rockauto usually has decent pics of the exhaust manifolds for most applications.

[1988GTU]

You'd need to list the year of the vehicle as well to have the most accurate information. It varies based on emissions and options.

[ericjon262]

as far as I know, all fiero manifolds are the same, of the manifolds I've seen, they all look the same. the LX9 manifolds are 2006 spec

[neophile_17]

Laughing, has anyone ever removed a set of Fiero manifolds without breaking the head off at least one of those Y pipe bolts? I haven't, but I prefer floating nuts anyhow.

~sam

[ericjon262]

I didn't even try, I just grabbed the cut off wheel!

[caffeine]

Laughing, has anyone ever removed a set of Fiero manifolds without breaking the head off at least one of those Y pipe bolts? I haven't, but I prefer floating nuts anyhow.

~sam

After I pulled my 2.8 I unbolted all of the exhaust parts and not one bolt broke or was even difficult to remove. I did spray them with penetrating oil first though.

[Kaiju Senso]

I didn't even try, I just grabbed the cut off wheel!

Ha ya me to!


Here is the only picture I can find of my 2005 Equinox 3400 (LNJ) manifold.

[caffeine]

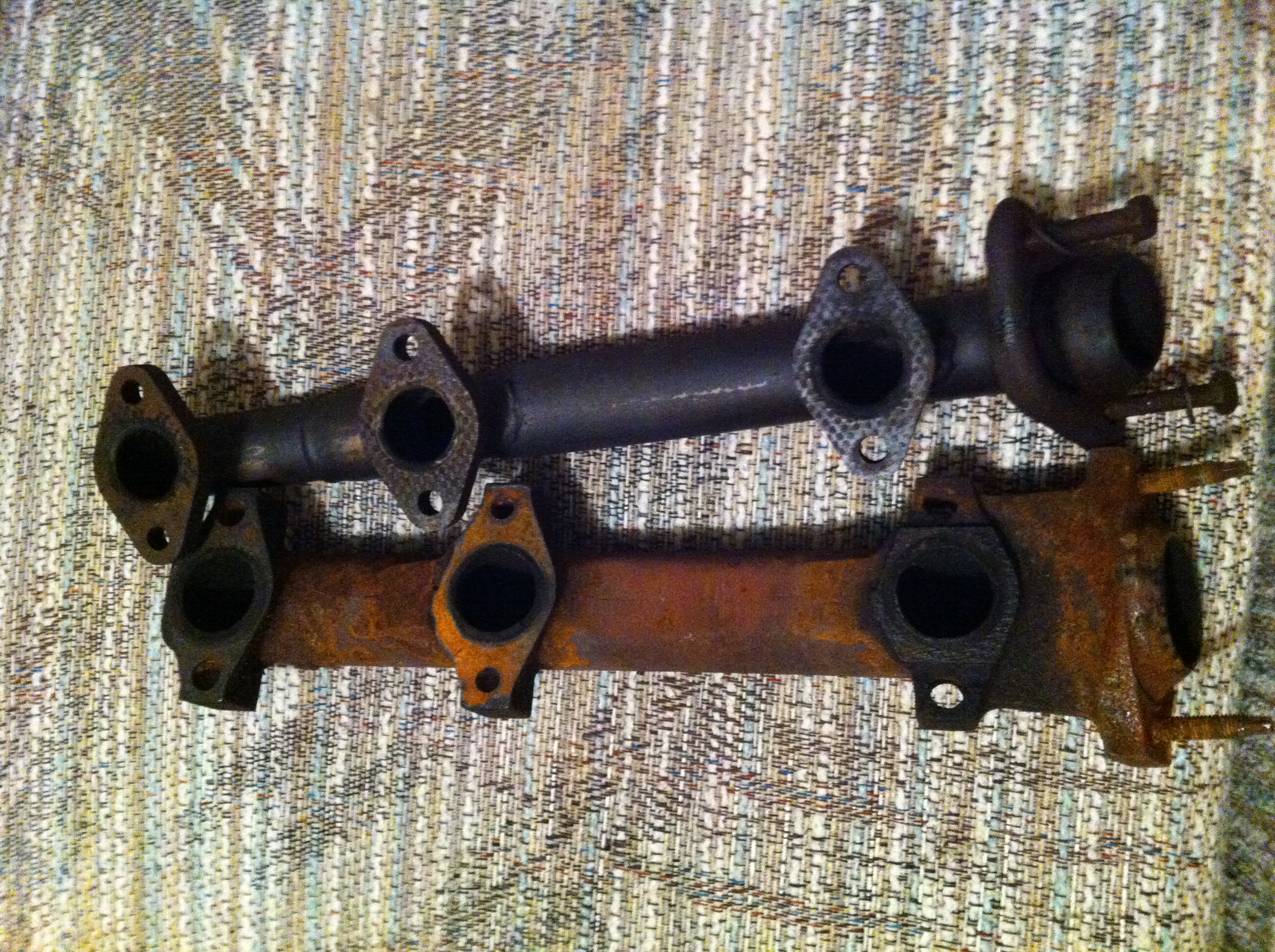

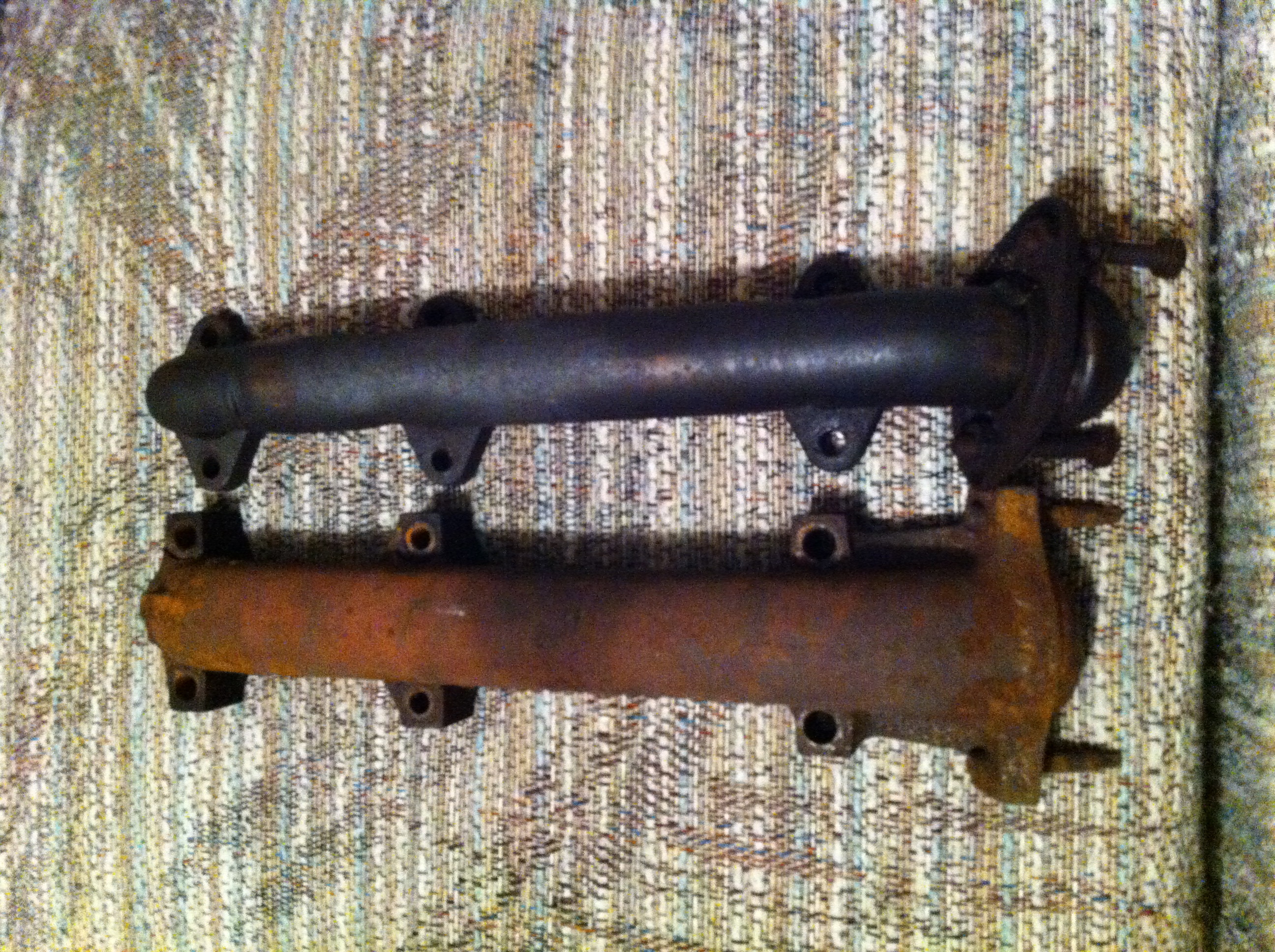

Turbo Grand Prix manifold in comparison to a 2.8 Fiero manifold.
