    I posted a while back about my leaking timing cover- debating whether or not I should fix it. Well, the decision was essentially made for me when I found that my lower intake manifold gaskets were leaking again. I put in some GM stopleak to get me by for a few weeks 'til I had time to fix it- worked great... but not a permanent solution. With Finals over, it was time to tear the ol' Corsica up. I did this job once before (5 years ago)- before recieving my 60-degree-education on this site and through experience...

    So I destroyed an entire weekend, and fixed it all. First of all, I'd like to thank Antisieze. I put this neat substance on every single bolt last time I had the engine apart (except for the LIM bolts, which got locktite)... and they all came out like I'd put them in yesterday. Except for the LIM bolts.

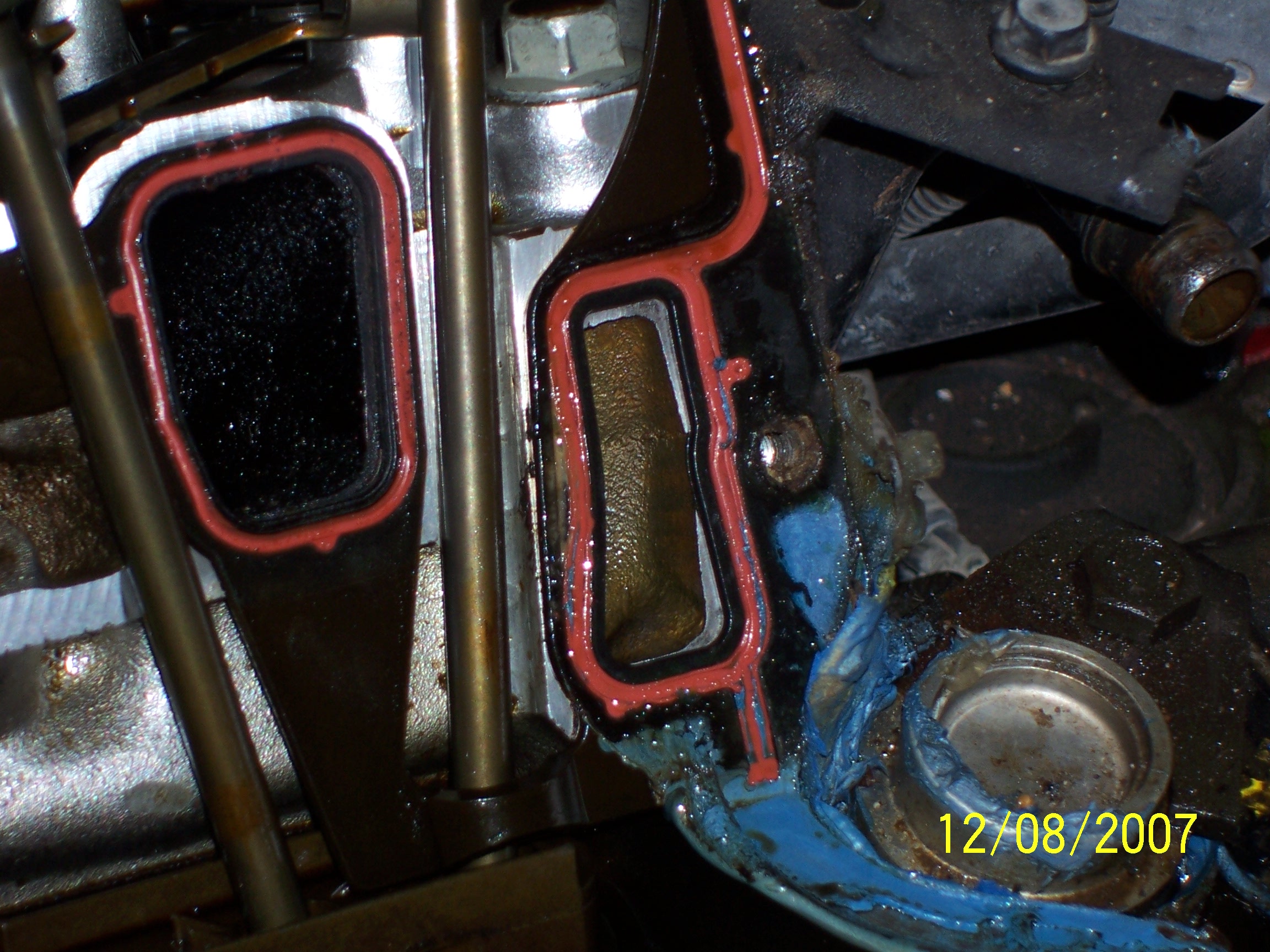

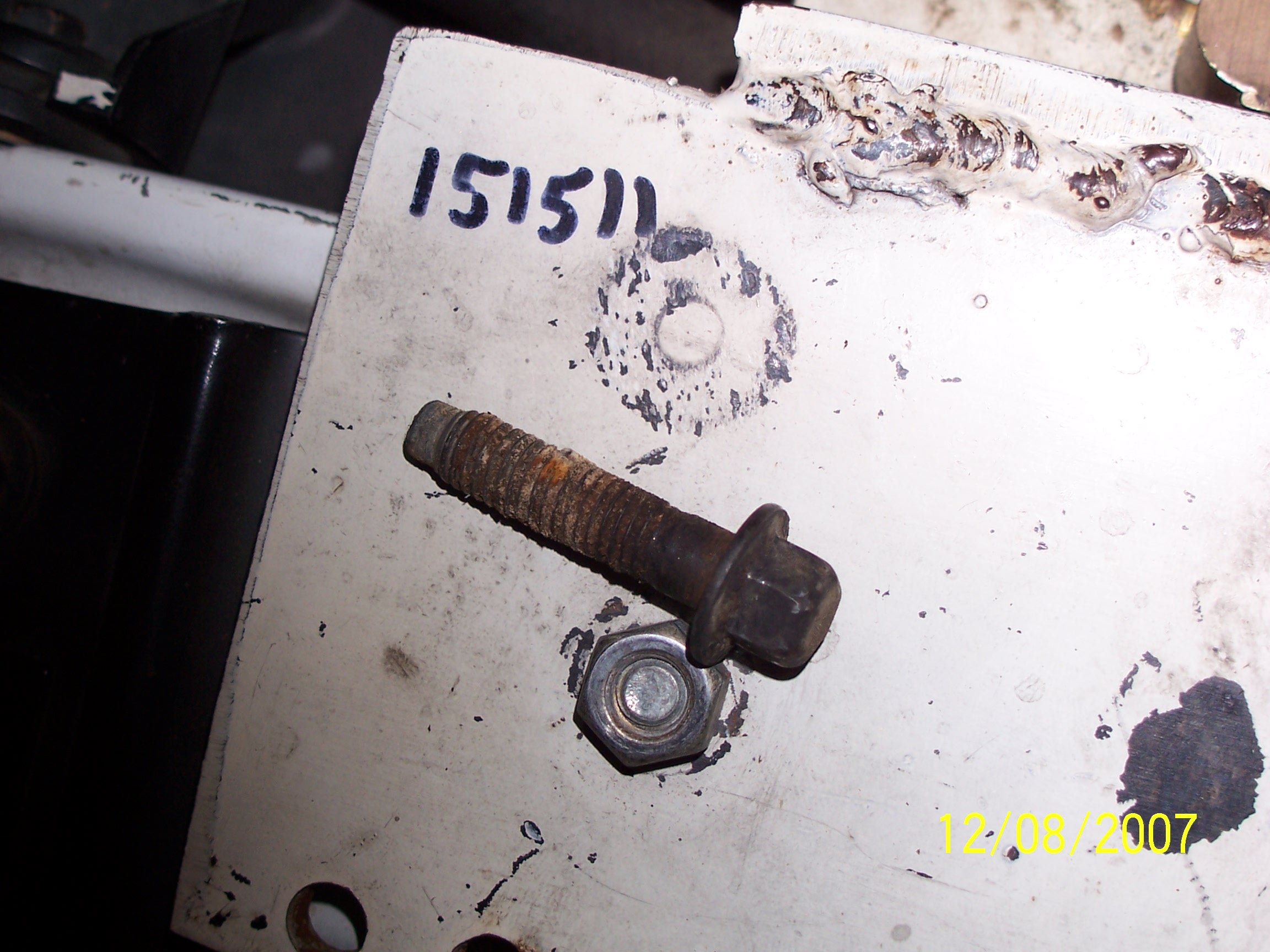

    The LIM gaskets failed in the usual manner. I only saw external leakage, but once I got the engine apart, I could see that a small amount of coolant had been getting into the oil. The leaking coolant really corroded one bolt up... had a hard time removing it. Ran a tap & die through/over the threads, and all was well.

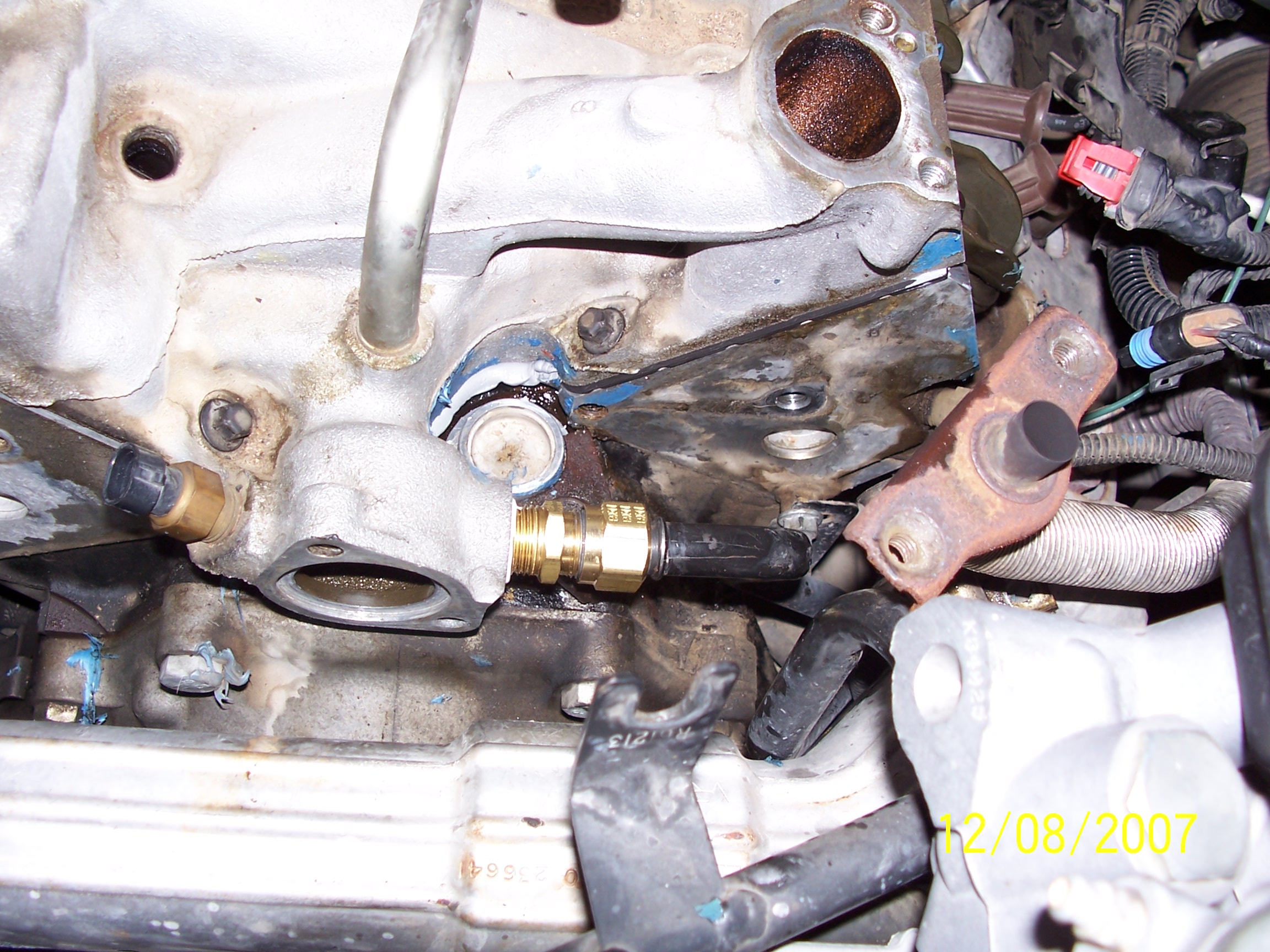

    Now, I don't know what order these pictures will display in, but I included a picture of my alternative to that stupid quick-connect fitting on the heater hose pipe. That thing pisses me off every time I deal with it... it breaks every time I try to remove the pipe, and I gotta pay another $13 for a new one. I put in a 5/8 compression fitting- worked like it was made for it.

    The timing cover part of the job went smoothly enough. After removing the wheel, motor mounts, brackets, tensioner, belt, alternator, p/s pump, etc... it came right off. The cover was in good shape- no pitting. The gasket was just old and rotten. Replaced the timing chain and timing damper while I was in there- one of the guides was coming apart. I put some silicon on the oil pan gasket and the bottom of the cover for lube & sealing, and the cover slid back into place easily enough.

    I replaced the oil pump drive o-ring with the new & improved GM o-ring. I replaced those leaky plastic valve covers with aluminum ones. And I filled the cooling system with G-05 antifreeze ('cause Dexcool sux). So far it runs good, and it's leak-free.

    Thanks for all the info from this site. It made the difference between a mediocre patch job (like I did 5 years ago) and a thorogh job with significant upgrades.
    Attached Files
    Last edited by tractorman; 12-13-2007, 12:47 AM.

  • #2
    Makes me happy I've only had good ole green and metal valve covers from the cars purchase.

    Did you use the metal LIM gaskets this time?

    The quick coupler pisses me off too. Instead of paying for a new one this time I just got an o-ring that was the right size and shoved all the parts back together and put it on. No leaks! the quick disconnect plastic things they sell replacements for but those are of really no use.... Mine broke and it still works cause there is a bolt that holds the metal line into the coupler anyways.

    Odd a compression fitting eh? Hmmm.

    Edit: Why did you pull the injectors and fuel rail?
    sigpic New 2010 project (click image)
    1994 3100 BERETTA. 200,000+ miles
    16.0 1/4 mile when stock. Now ???
    Original L82 Longblock
    with LA1, LX9, LX5 parts
    Manifold-back 2.5" SS Mandrel Exhaust. Hardware is SS too.

    Comment


    • #3
      I see your car is a '94. I thought all the '94 engines came with those ill-concieved plastic valve covers. Maybe I was just unlucky. I think this old Corsical also initially came with green antifreeze, but somewhere along the way, somebody put Dexcool in it. By the time I met my wife, the car had 80,000 on it and the cooling system was thoroghly plugged with dex-sludge. You can still see the remnants of it in the coolant ports in that picture.

      I used the new metal Felpro gaskets, and am quite confident that I'll never have to do this repair again. I used these on the '01 Lumina, and it's been leak-free and squeaky clean for two years now. I used Detroit Diesel gray RTV for the LIM ends and the T-joints for all these gaskets. It's good stuff... I've seen it hold up for 800,000+ miles in trucks.

      I could've removed the vertical LIM bolts with the fuel rail in place- by just flexing the fuel rail slightly to the side. But the wire for the cam sensor ran under the fuel rail- and the plug wouldn't fit through. My choices were to either pull the cam sensor or pull the fuel rail... and the cam sensor was thoroghly stuck- I would've had to break it to remove it. So off came the fuel rail. It was much easier this time since it'd been off only 5-ish years ago, and last time I used some John Deere grease to help the o-rings slide in... helped them slide out, too. I was surprised to find that the lower injector o-rings were already hardened. Not crispy, mind you... but hard enough that I went ahead and replaced them again.

      If I had had my electrical connector tools with me (they were at work), then taking that connector apart and slipping the wires through would've also been an option... but at the time, the fuel rail was the path of least resistance.

      That's a good point about the quick-connector. In theory, that stupid plastic clip that always breaks isn't even neccesary. Just the same, I'm quite happy so far with my more permanent replacement.

      Comment


      • #4
        F(*@#&$(*&#$(*&#$(*#$(*$#*K I clicked a picture and it took me away, and when I hit back the text I had typed was no longer there. I guess FireFox no longer saves it. (*@Q#$@(*#$(*#@(*$#@(

        The previous owners dad worked for a GM Dealer, so I'm sure it got metal covers then. My covers are shiny aluminum too, no rough cast.

        To remove the LIM and rails together, pull up on the cam sensor by the wires, only way to remove it.. I've done that 4-5 times and the original one still works. Then use 1/4" sockets to get the vertical LIM bolts out, if you need to loosen the 2 bolts holding the rail down and just wiggle it to get it out of your way. Disconnect the fuel lines at the fire wall and move the whole thing out of the way. I re-routed the cam sensor plug last time though so it's not trapped anymore.

        They should offer the other plastic innards of the coupler to rebuild it not just the worthless clips that do nothing. I was careful last time not to break those pieces and threw a new o-ring in and was good. What exactly were the parts you used? I thought the LIM threads were 1/2" NPT or something... ??

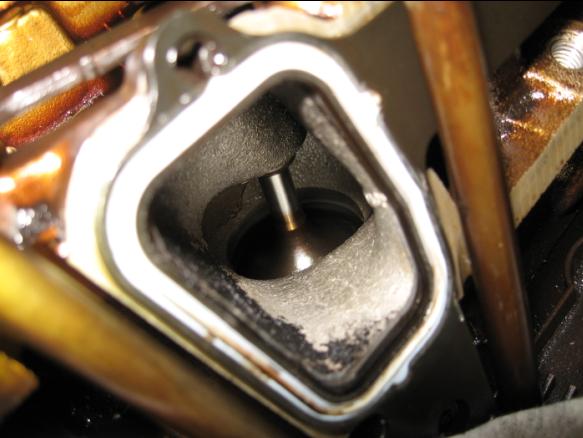

        How come your intake port on your head is so black?? You are running super rich or something?? I have a lot of oil from the PCV and mine don't look like that. Here is a pic of mine with like 190k miles or something at the time.
