    coolant routing for 3x00 engines...i need help

    well i dont have the coolant routing hooked up right, and its making me feel stupid. ive got the inlet and outlets right for the engine. the heater core is not right, but it works...i have a resivoir tank, but its not right either.

    anyone have a pic of the black bleeder thats ontop of the water pump? can you show me where those two tubes are supposed to go?
    how is the resivoir hooked up?

    thanks guys
    3500, 1280 cam and PR, ls6 valve springs, port and polished heads, ported lim, ported uim, 4.3 70mm tb, ported trueleo headers and y pipe ALL FOR SALE (minus the car)
    96 LT4 6spd corvette. 355, AI 215cc LT4 Comp CNC Heads, Prope SRS pistons, Ported intake, ARH long tubes, Corsa Indy Pace 4:10 gears
    2012 Chevy Sonic Turbo 6spd
    1970 M35A2 Deuce and a Half, Spin on filters, Turned up IP, HIDs, Flat Black, 11.00x20 singles.
    Tags: None
  • #2
    The 90 degree outlet on the black bleeder part goes to the tube that goes ontop of the LIM, but under the UIM. The tank is hooked up to the thermostat housing, and the rad.
    95 Beretta- Lg8 Daily Driver
    94 Beretta z26- First ever 5-speed 3500 L body- In the works.

    Comment

    • #3
      ive got the one that goes to the lower intake hooked up right, where does the other tube connect?
      3500, 1280 cam and PR, ls6 valve springs, port and polished heads, ported lim, ported uim, 4.3 70mm tb, ported trueleo headers and y pipe ALL FOR SALE (minus the car)
      96 LT4 6spd corvette. 355, AI 215cc LT4 Comp CNC Heads, Prope SRS pistons, Ported intake, ARH long tubes, Corsa Indy Pace 4:10 gears
      2012 Chevy Sonic Turbo 6spd
      1970 M35A2 Deuce and a Half, Spin on filters, Turned up IP, HIDs, Flat Black, 11.00x20 singles.

      Comment

      • #4




        what goes in the red circle?

        is that heater hose correct?
        3500, 1280 cam and PR, ls6 valve springs, port and polished heads, ported lim, ported uim, 4.3 70mm tb, ported trueleo headers and y pipe ALL FOR SALE (minus the car)
        96 LT4 6spd corvette. 355, AI 215cc LT4 Comp CNC Heads, Prope SRS pistons, Ported intake, ARH long tubes, Corsa Indy Pace 4:10 gears
        2012 Chevy Sonic Turbo 6spd
        1970 M35A2 Deuce and a Half, Spin on filters, Turned up IP, HIDs, Flat Black, 11.00x20 singles.

        Comment

        • #5
          to the top
          3500, 1280 cam and PR, ls6 valve springs, port and polished heads, ported lim, ported uim, 4.3 70mm tb, ported trueleo headers and y pipe ALL FOR SALE (minus the car)
          96 LT4 6spd corvette. 355, AI 215cc LT4 Comp CNC Heads, Prope SRS pistons, Ported intake, ARH long tubes, Corsa Indy Pace 4:10 gears
          2012 Chevy Sonic Turbo 6spd
          1970 M35A2 Deuce and a Half, Spin on filters, Turned up IP, HIDs, Flat Black, 11.00x20 singles.

          Comment

          • #6
            Ok on the circle thing, that is the thermostat housing which goes to the radiator. Well the circle can be one of two things. 1) a air bleeder valve, or 2) run a hose to the coolant recovery tank. It varies on vehicles. (mine has a return line, luminas have a bleeder) You should just use the air bleeder valve to keep it simple probably on your setup, but it's not self-bleeding then.

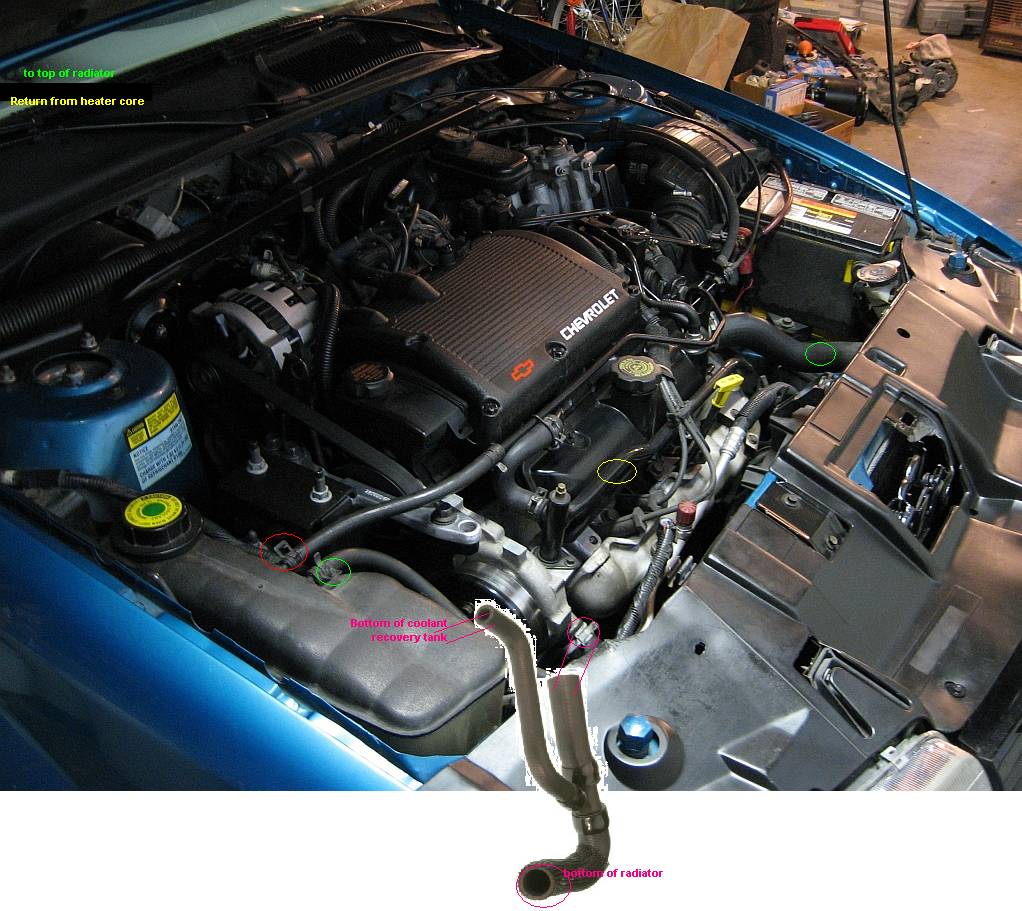

            On the attached image you can see where the rest goes. The heatercore output is in the LIM coming out where the thermostat goes. The return is labeled in the picture. The red circle on the coolant recovery tank is the line coming from where you circled it in your picture, the thermostat neck/radiator input.

            Here you can see the same routing at a different angle. Note the line going to the recovery tank from the thermostat housing neck, and the big hose going from the bottom of the recovery tank going to the bottom of the radiator.

            Attached Files
            sigpic New 2010 project (click image)
            1994 3100 BERETTA. 200,000+ miles
             16.0 1/4 mile when stock. Now ???
            Original L82 Longblock             with LA1, LX9, LX5 parts
            Manifold-back 2.5" SS Mandrel Exhaust. Hardware is SS too.

            Comment

            • #7
              does the radiator have a pressure cap?
              3500, 1280 cam and PR, ls6 valve springs, port and polished heads, ported lim, ported uim, 4.3 70mm tb, ported trueleo headers and y pipe ALL FOR SALE (minus the car)
              96 LT4 6spd corvette. 355, AI 215cc LT4 Comp CNC Heads, Prope SRS pistons, Ported intake, ARH long tubes, Corsa Indy Pace 4:10 gears
              2012 Chevy Sonic Turbo 6spd
              1970 M35A2 Deuce and a Half, Spin on filters, Turned up IP, HIDs, Flat Black, 11.00x20 singles.

              Comment

              • #8
                Nope. The overflow tank has a pressure cap.
                sigpic New 2010 project (click image)
                1994 3100 BERETTA. 200,000+ miles
                 16.0 1/4 mile when stock. Now ???
                Original L82 Longblock                 with LA1, LX9, LX5 parts
                Manifold-back 2.5" SS Mandrel Exhaust. Hardware is SS too.

                Comment

                • #9
                  gotcha...gonna have to think this one out for the fiero, it had a pressure cap on the engine and on the radiator
                  3500, 1280 cam and PR, ls6 valve springs, port and polished heads, ported lim, ported uim, 4.3 70mm tb, ported trueleo headers and y pipe ALL FOR SALE (minus the car)
                  96 LT4 6spd corvette. 355, AI 215cc LT4 Comp CNC Heads, Prope SRS pistons, Ported intake, ARH long tubes, Corsa Indy Pace 4:10 gears
                  2012 Chevy Sonic Turbo 6spd
                  1970 M35A2 Deuce and a Half, Spin on filters, Turned up IP, HIDs, Flat Black, 11.00x20 singles.

                  Comment

                  • #10
                    No problem. Let me know if you don't understand part of my explanation.
                    sigpic New 2010 project (click image)
                    1994 3100 BERETTA. 200,000+ miles
                     16.0 1/4 mile when stock. Now ???
                    Original L82 Longblock                     with LA1, LX9, LX5 parts
                    Manifold-back 2.5" SS Mandrel Exhaust. Hardware is SS too.

                    Comment

                    • #11
                      nope i got it, its just that my overflow will be seperate from my resivour cause the radiator is up front.....
