has anyone determined what year make and models had the forged crank?
-
1996 beretta w/a 04' 3400 3.5 top end, 42.5lb hr, 180*thermo, t3t4 .63ar 60 trim, LC1 WB, FMIC, greddy rs BOV,TIAL 38mm wastegate,791xv,fidanza,stage III clutch,TG LSD,ffp udp,walbro 255 lph,strut tower brace,22 rear sway,30 front sway,92 5sp tranny,92 subframes,all solid mounts,kyb shocks and struts,eibachs,battery in trunk,tgp map sensor,DHP Powrtuner,euro front and rear and more to come soon...mods sitting in boxes waiting install....zo4 kit,GTU wing,and more.. -
Any year and model can. I haven't seen an iron 3500 crank yetBen
60DegreeV6.com
WOT-Tech.com -
good... lol i just called gm and my parts lady run a search for me on the 7484 part number and these are the vehicles that she said have them....
forged crank
05-06
buick terrenza
04-06 malibu maxx
05-06 sv
05-06 montana
05-06 uplander
355..my cost1996 beretta w/a 04' 3400 3.5 top end, 42.5lb hr, 180*thermo, t3t4 .63ar 60 trim, LC1 WB, FMIC, greddy rs BOV,TIAL 38mm wastegate,791xv,fidanza,stage III clutch,TG LSD,ffp udp,walbro 255 lph,strut tower brace,22 rear sway,30 front sway,92 5sp tranny,92 subframes,all solid mounts,kyb shocks and struts,eibachs,battery in trunk,tgp map sensor,DHP Powrtuner,euro front and rear and more to come soon...mods sitting in boxes waiting install....zo4 kit,GTU wing,and more..Comment
-
i am pretty sure somebody one here had one in a g6 3500Comment
-
Yes the G6 has it and I wouldn't doubt that it can be found in any vehicle with the 3500V6Comment
-
my 04 Malibu 3500 has the forged crank..Comment
-
yeah bullshit, neither of my 2, from an 05 G6 and an 04 malibu have the forged cranks.Comment
-
are they forged or steel?1996 beretta w/a 04' 3400 3.5 top end, 42.5lb hr, 180*thermo, t3t4 .63ar 60 trim, LC1 WB, FMIC, greddy rs BOV,TIAL 38mm wastegate,791xv,fidanza,stage III clutch,TG LSD,ffp udp,walbro 255 lph,strut tower brace,22 rear sway,30 front sway,92 5sp tranny,92 subframes,all solid mounts,kyb shocks and struts,eibachs,battery in trunk,tgp map sensor,DHP Powrtuner,euro front and rear and more to come soon...mods sitting in boxes waiting install....zo4 kit,GTU wing,and more..Comment
-
im assuming steel because they do not end in 7484Comment
-
Picture time!Ben
60DegreeV6.com
WOT-Tech.comComment
-
Ben you're killing me lol! I wont be able to touch the motors for a few days.
what kind of pictures are you thinking? Crank cast # or crank out of engine?
*edit.
I even ran the casting #s at GM parts direct and it came back with nothing found!Last edited by wasas9; 01-18-2007, 08:04 PM.Comment
-
are the "forged" cranks FORGED?1996 beretta w/a 04' 3400 3.5 top end, 42.5lb hr, 180*thermo, t3t4 .63ar 60 trim, LC1 WB, FMIC, greddy rs BOV,TIAL 38mm wastegate,791xv,fidanza,stage III clutch,TG LSD,ffp udp,walbro 255 lph,strut tower brace,22 rear sway,30 front sway,92 5sp tranny,92 subframes,all solid mounts,kyb shocks and struts,eibachs,battery in trunk,tgp map sensor,DHP Powrtuner,euro front and rear and more to come soon...mods sitting in boxes waiting install....zo4 kit,GTU wing,and more..Comment
-

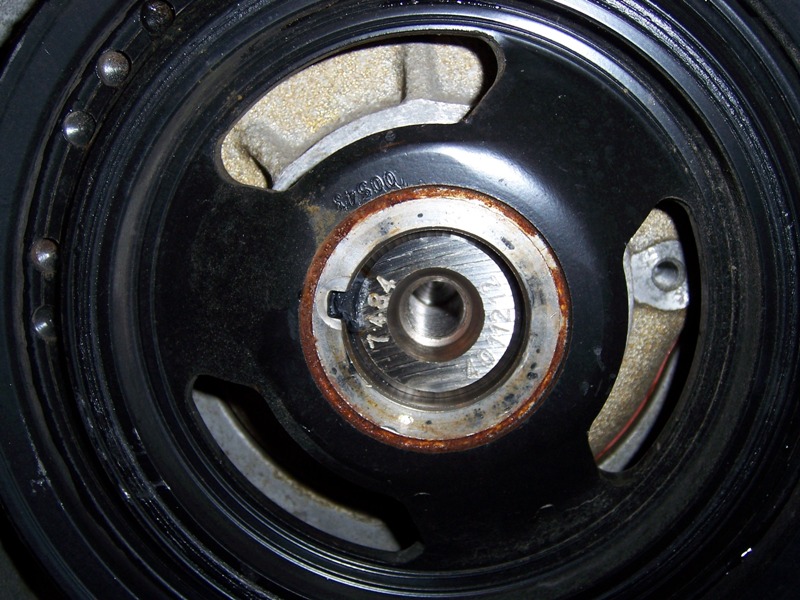

If they do not have 7484 as the end of their part number they are CAST IRON. The 7484 is steel and that's what makes it stronger. I'm not sure where the forged idea came from. When I sorted this out months ago with GM parts direct I was informed of the weight difference which I posted on here somewhere being about 5 lbs between the cast crank and the steel crank and that's how I was able to make the 7484 association which was stamped on both of my cranks.Originally posted by wasas9 View Post
The cranks are not exclusive to any 3500 vehicle from what I have observed and if you check GM parts direct you'll find both numbers listed for pretty much all of the applications. GM helped us out by putting the number on the end of the crank so that simply removing the balancer bolt would reveal this information before your purchase.Comment
-
I uploaded more pics so there should be enough there to figure it out. As for being forged, I thought it was forged steel.Ben
60DegreeV6.com
WOT-Tech.comComment
-

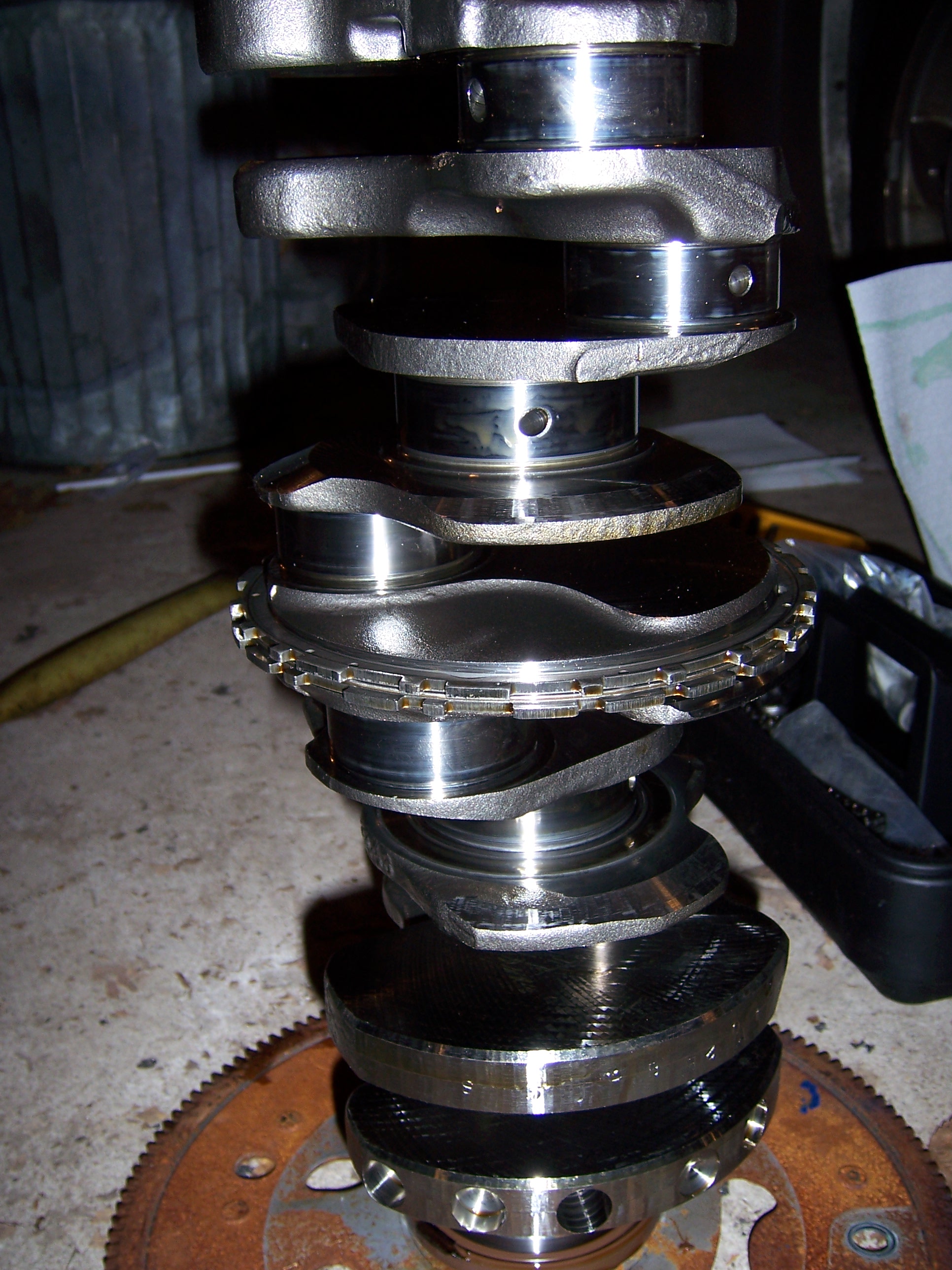

This is what came out of the 04 3500 I bought.
Definately steel, Forged, well I guess thats up in the air now.Attached Files
