As for Project Camilla, I got a few more things done today, but not what I had hoped to do. Goal was to have the engine fully assembled, but that didn't happen. I took apart the 200 mile almost new oil pump to inspect it, and found massive casting porosity in the housing. VERY disappointed. I don't know if it was a contributin factor or not to the original main bearing failure - but it is definately not going back together like this.

All pistons / rods in and torqued.


Shiney side up....


Dowel pins and headgasket in place.


Heads on and torqued.


Then the manifold....


And valvetrain!


This will be the last update for a while because I just got two overseas work assignments. Could be days, possibly a month or more. I've sprayed the engine with VCI and wrapped it in plastic until I return.

Sincerely,
David

[Purple pit]

Damn, I hate waiting. Oh well, hope the trip is safe and a good one.

[ericjon262]

damn man, this is a pretty cool budget build! I would have done a couple things a little different, but overall Good job!

[davida1_hiwaay_net]

damn man, this is a pretty cool budget build! I would have done a couple things a little different, but overall Good job!

Thanks!

I'm finally home from Africa! Only have a few days but hope to get engine back in the car soon.

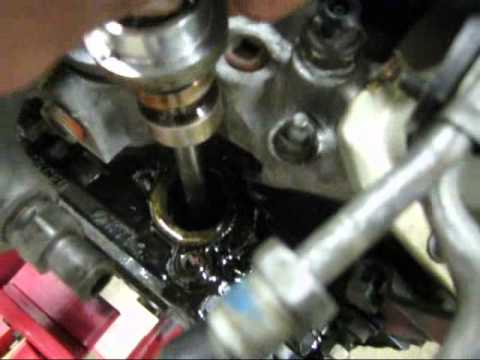

I did this short video on prelube of the engine, using electric drill. Made 65 PSI.

Sincerely,
David

[ericjon262]

what do you do for work that takes you to africa?

[davida1_hiwaay_net]

what do you do for work that takes you to africa?

I work for a major marine industrial engine manufacturer's commissioning / field service organization. Last year I spent a lot of time in China commissioning a new drillship's powerplant. It is completed now, and working off the West African coast. They needed some adjustments to the generator monitoring and automation system. So I had to go there and help them out. All in a day's work!

[davida1_hiwaay_net]

Well, the engine is about ready to be re-coupled to the transmission!

Oilpan on. The front by the timing gear housing is "strange." The rubber gasket had to be cut and there is a small cork piece there. This is one of the differences in this early engine and the "newer" iron head engines.


As for the non-used speed timing sensor hole - a 3/4" cup plug and a little bit of Loctite capped this off. Looks like it came from the factory!


Almost done. Tomorrow hope to get the trans re-connected and work towards getting it back in the car.


Sincerely,
David

[3400-95-Modified]

Glad to see someone else prime these engines properly but the only critique I have is throw a rubber o-ring on that dummy plug so it doesn't leak all over the block! My spare plug has the o-ring on it so when priming it keeps all the oil in the system.

[davida1_hiwaay_net]

Glad to see someone else prime these engines properly but the only critique I have is throw a rubber o-ring on that dummy plug so it doesn't leak all over the block! My spare plug has the o-ring on it so when priming it keeps all the oil in the system.

Thanks, yes I didn't want to take chances with it. Assembly lube works very well, but it doesn't help if there is an undetected problem with the lubrication system and you don't build pressure immediately!

I wish I had a good o-ring for the dummy shaft, but I used the new one on the "real" distributor and didn't want to risk breaking it to transfer it to the old shaft and back. There was an old o-ring on there, it was just hardened and shrunk.

[davida1_hiwaay_net]

Camilla Update!

She lives!!!

Today Project Camilla rides again!

Sorry I have not been posting many pictures because I've had many many other obligations come up.

Powertrain ready to go back in:


Sheilding on the front manifold to protect the wiring and A/C compressor switches.




Going down.....


And it's in!


Everything connected up - ready to go!


And out the door for a test drive!

I am very happy because the engine runs great and there are no leaks!

Also the transmission is shifting perfectly. The original problem (high pressure and second-gear starts) was a jammed valve. The modulator boost valve spool had some factory "identification grooves" in it. These grooves caused it to get jammed on the clip which holds the boost valve bushing into the transmission valve body. This is something all the transmission guys should note well, as it is a real bad GOTCHA since it jams sometimes and sometimes works.

I had never seen a "grooved stem" boost valve before. It is a very high ratio boost valve, therefore desirable for a high performance car. Unfortunately, it is vulnerable to getting jammed. All the other boost valves have smooth stem and the clip will slide freely. I simply machined off the grooves so it is not going to jam.

Boost valves. The one on the right is more common. The one on the left has one raised ridge on it to identify it as extra high ratio.


You can see this groove through the clip slot.




Installed in valve body, normal condition. (this is from parts transmission)


Valve jammed. The pin is in all the way.


The pin jammed in has same effect as modulator sensing high manifold pressure / no vacuum. Normally the hydraulic oil from the modulator circuit presses this valve in the higher the engine load. Then the valve is pressing a spring. This spring is adding pressure to the pump regulating valve to bring up the transmission charge pressure. There are 2 boost valves working together to control the pressure. This one is the one that does most of the work when driving the car. The other is for Reverse only.

[Purple pit]

Sure sounds good. Those older engines really had a nice sound, much better than 3100. Damn I miss that.

[davida1_hiwaay_net]

Alright, here's an update for Camilla today! I was having trouble with my camera and plan to buy a new one soon. That's why I haven't been able to successfully make a video of the new engine. Today I managed to get it working by cleaning the battery contacts.

I have been wanting to experiment with amplifiers added to these factory radios. Chris ordered a miniature 300W Clarion XC amplifier. It was not expensive. The unit is about the size of a fluorescent lamp ballast. We vacillated about the amplifier placement, and anywhere but the dash would have involved making a long wiring harness and a lot of extra work. Turns out there is JUST ENOUGH ROOM in the dash, immediately below the radio, for the amp to sit there. I installed spare wiring connectors from the JY on the amplifier so it plugs directly into the radio and car harness. Completely modular. The only external connection is the power supply, which goes to an unused point on the fusebox.

Here is the amp in the dash, before the radio goes in:


That amp is very small, but it is rated at 300W continuous. The factory radio is rated 100W. So it's 3x as powerful. With the aftermarket speakers in the car, it is pretty strong. The only thing about this amp is, it does not like the engine to be cranked. If the radio is on while the engine is cranking, the amplifier will go into "protect" mode. I will contact the manufacturer about this.

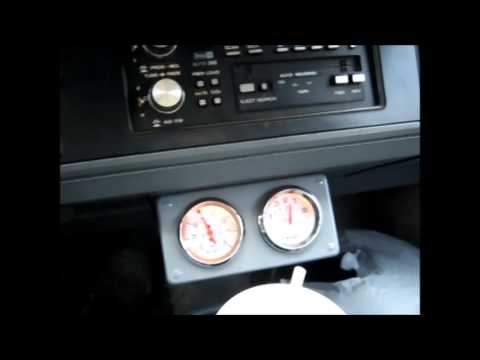

Also got the tachometer installed and connected up.





Night mode:


It is a Sunpro Supertach II, which is designed to go on the steering column, with a clamp. This column is not going to work with the clamp, so I had to mount it with 2 screws. I took the wheel off, so I could verify no damage to the parts of the column. The screws have to be short.



Video is up!
So today I managed to get some satisfaction out of the camera!

Got this video recorded, showing the performance of the engine at 12.75 PSI boost....

Sounds pretty good, IMHO.
