  • 91 gt 3.1 turbo vacume line HELP!

    Can anyone please tell me if i have vacume lines correct ? Like internal waste gate,blow off valve, manual boost controller, and boost gauge.If i can get pics.up. or tell me where they go.If anyone has any pics. that would help also.Thank you all!

  • #2
    If you post up pictures we can help.

    Typically, the BOV and waste gate will both receive a vacuum/boost reference from the intake manifold (though both should have their own lines). The manual boost controller is a bleeder put in the line to the waste gate. It reduces the pressure the waste gate sees and allows you to run higher boost. The waste gate can also source from a port on the compressor outlet on the turbo and many internal waste gates are configured just like that.

    Tim
    1995 Z34 - T04E "60" trim, 42.5 lb/hr injectors, AEM WBO2, FFP UD&DB, 3" exhaust, 2800 stall, shift kit, tranny cooler, Powerslot, Hawk HPS, rear disc conversion, KYB, Eibach, HMS F&R STB, Fittipaldi Force 18" wheels, big stereo, lots more coming eventually...
    325 whp 350 lb-ft

    Comment


    • #3

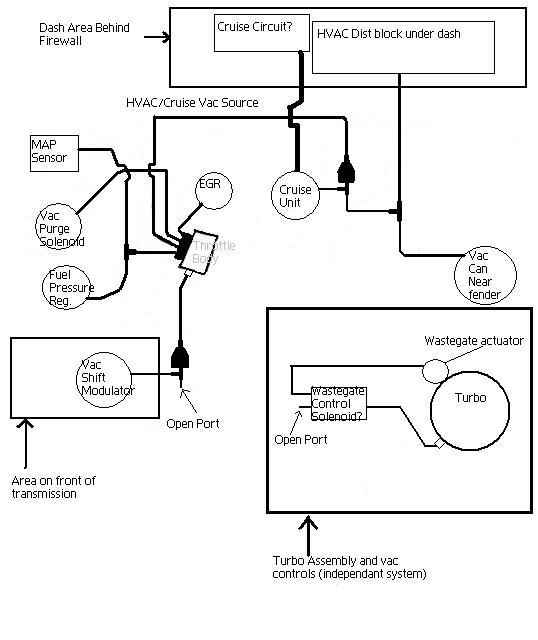

      Here is a vac diagram from a TGP.
      Click image for larger version

Name:	vacdiagram.jpg
Views:	1
Size:	38.5 KB
ID:	377197

      Comment


      • #4

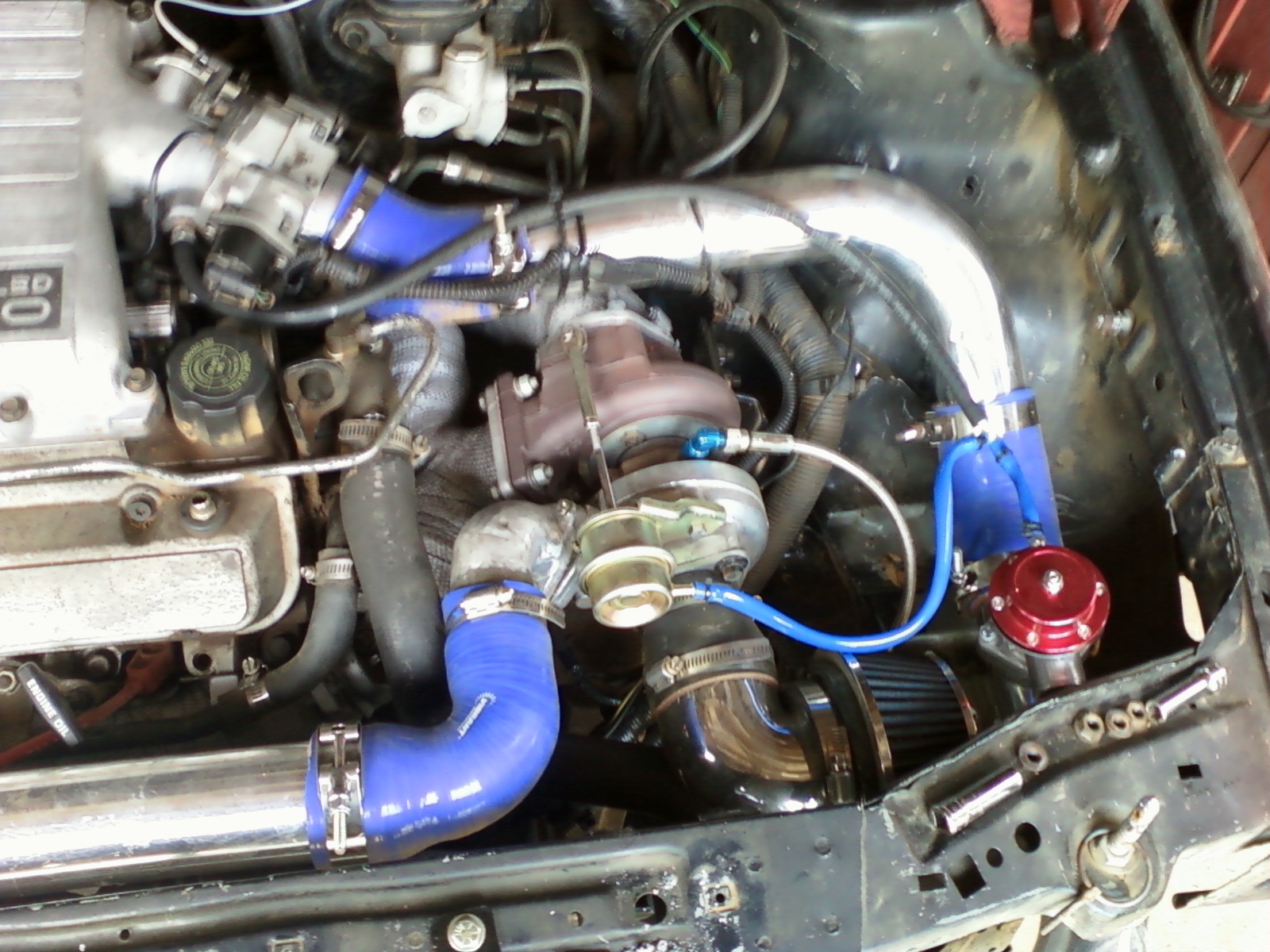

        Let me try this again with the pics.Compressor side of turbo does not have a vacuum port.I thought it was vital to have some things hooked up before or after throttle plate.I probably should drill and tap for a port on custom compressor outlet elbow for waste gate actuator. Click image for larger version

Name:	91 beretta turbo 1.jpg
Views:	1
Size:	717.5 KB
ID:	377200Click image for larger version

Name:	91 beretta turbo 2.jpg
Views:	1
Size:	586.8 KB
ID:	377201

        Comment


        • #5
          The way it is now should work. Unless you have boost control issues, I wouldn't worry about it.

          Tim
          1995 Z34 - T04E "60" trim, 42.5 lb/hr injectors, AEM WBO2, FFP UD&DB, 3" exhaust, 2800 stall, shift kit, tranny cooler, Powerslot, Hawk HPS, rear disc conversion, KYB, Eibach, HMS F&R STB, Fittipaldi Force 18" wheels, big stereo, lots more coming eventually...
          325 whp 350 lb-ft
