4T4x-E Mechanical Specifications Information

Collapse
X
Collapse
  •

  • 4T4x-E Mechanical Specifications Information

    4T40-E/4T45-E Automatic Transaxle Unit Repair

    NOTE: Click on images to see a full-size view.

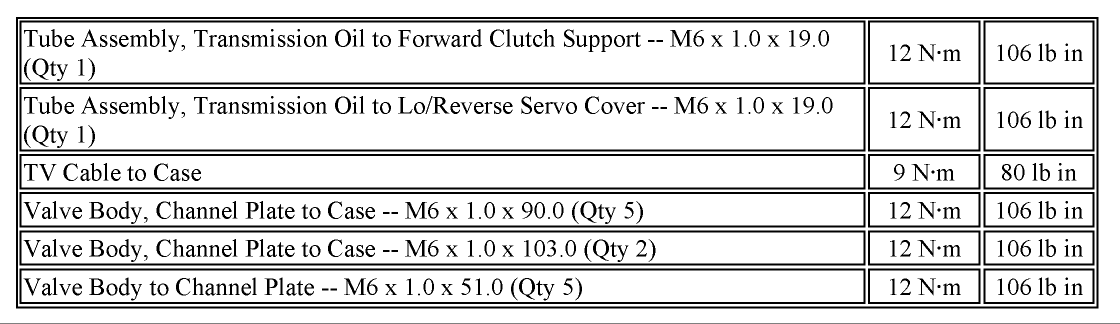

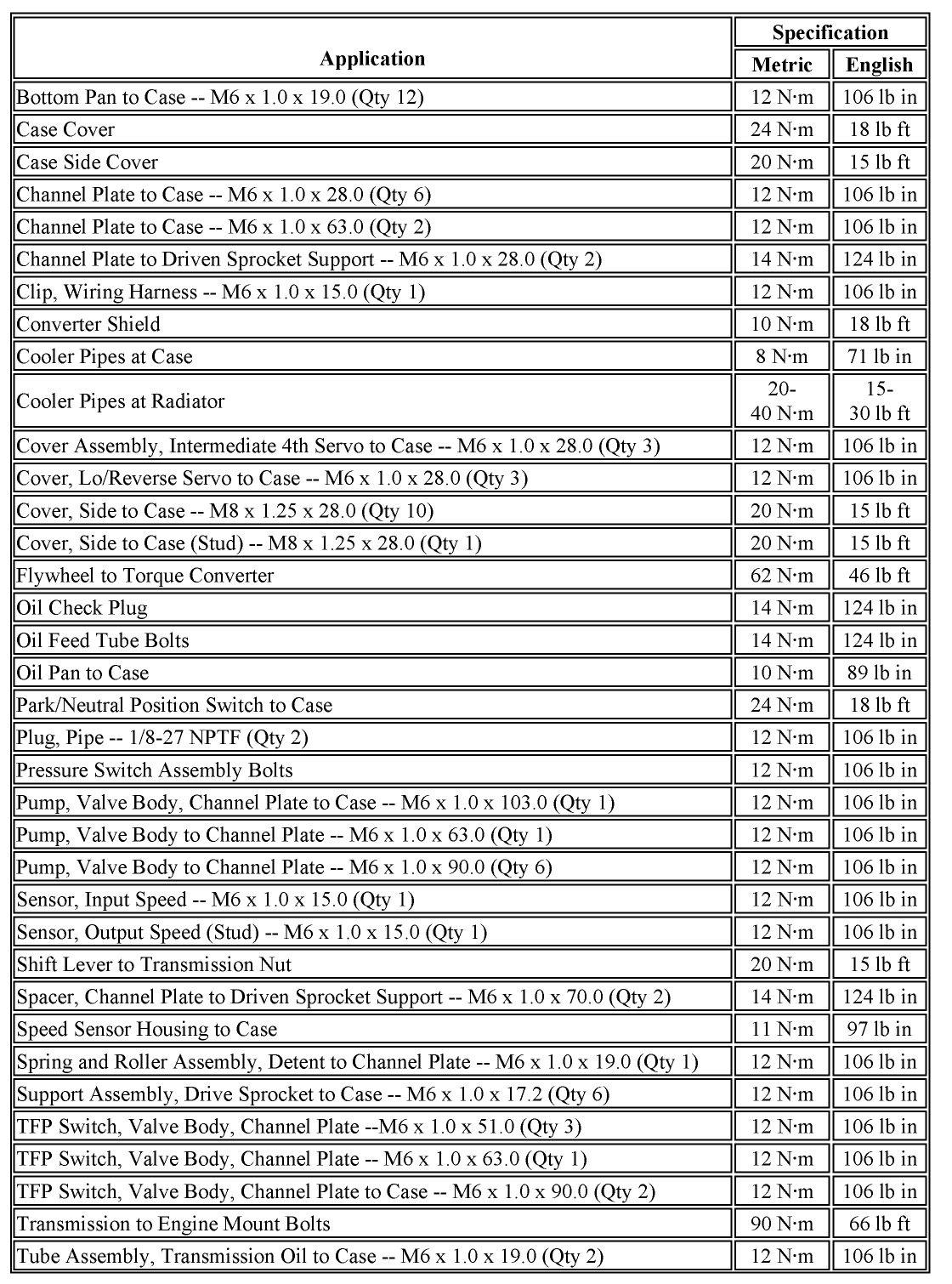

    Fastener Tightening Specifications

    Click image for larger version Name: Fastener Tightening Specifications 1.gif Views: 1 Size: 91.8 KB ID: 424751 Click image for larger version Name: Fastener Tightening Specifications 2.gif Views: 1 Size: 18.8 KB ID: 424750

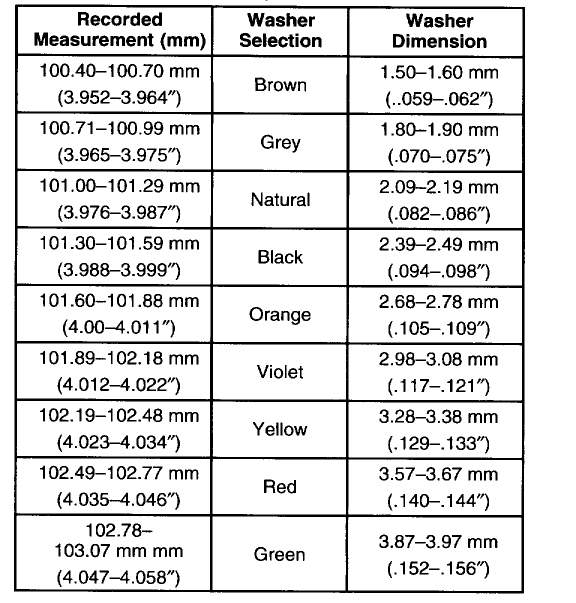

    End Play Specifications
    Click image for larger version Name: End Play Specifications.gif Views: 1 Size: 23.4 KB ID: 424752


    Reverse Clutch Backing Plate Specifications
    Click image for larger version Name: Reverse Clutch Backing Plate Specifications.gif Views: 1 Size: 6.4 KB ID: 424756


    On-Vehicle

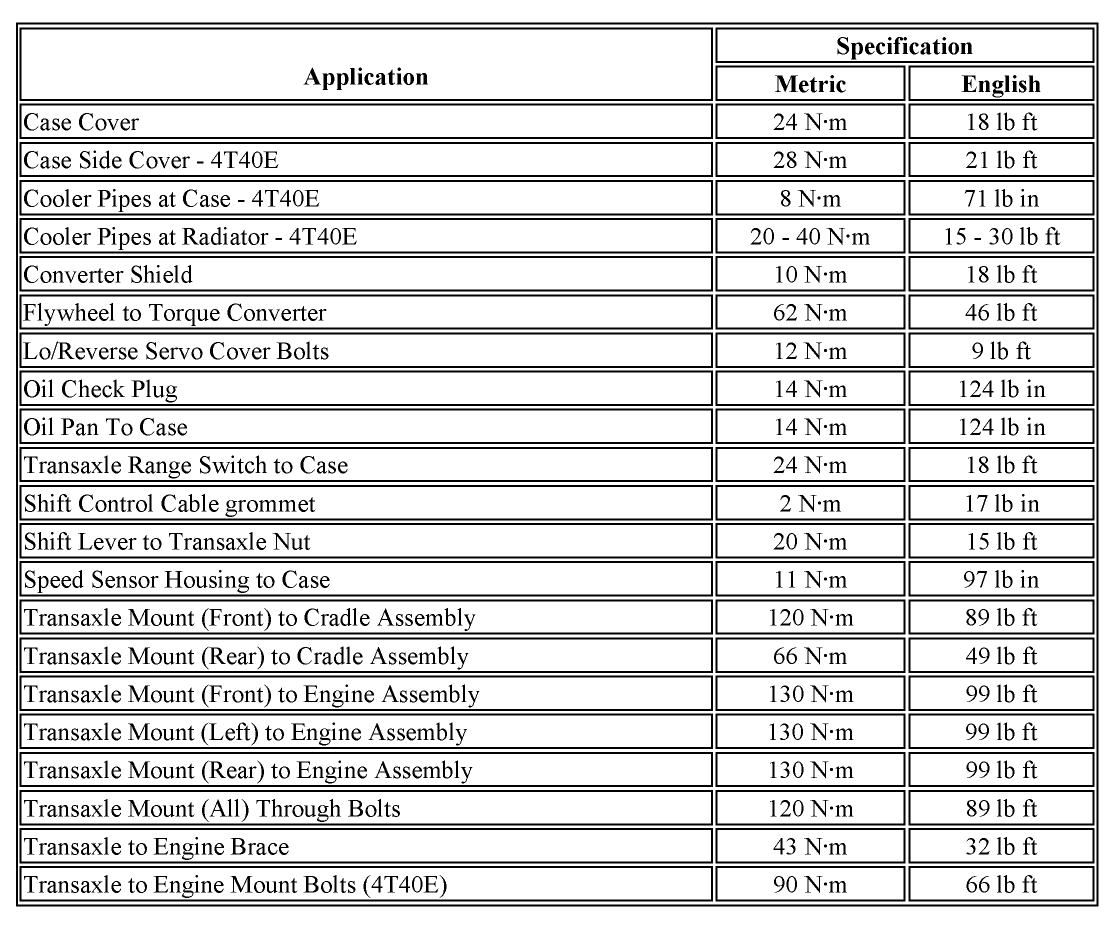

    Fastener Tightening Specifications
    Click image for larger version Name: Fastener Tightening Specifications 3.gif Views: 1 Size: 46.4 KB ID: 424749

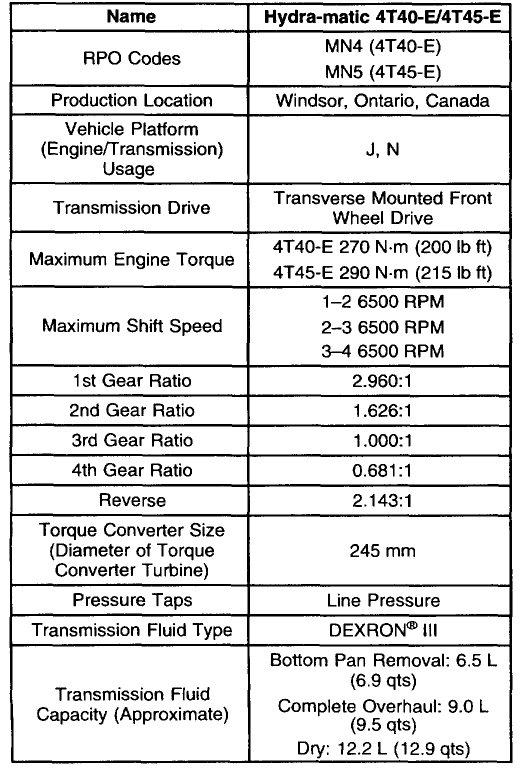

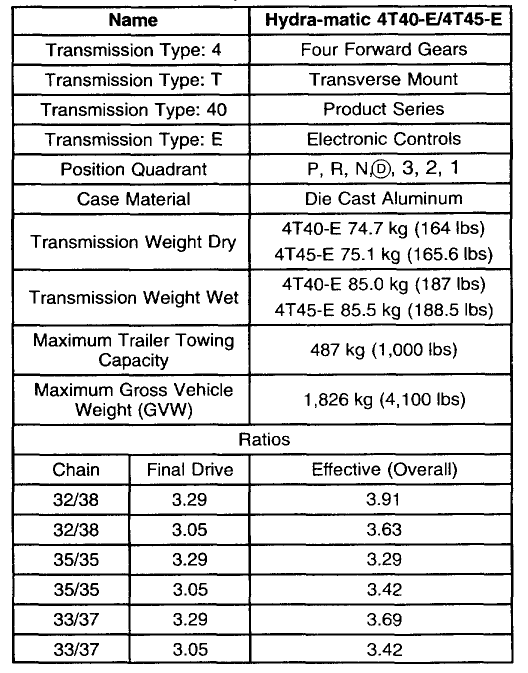

    General Specifications
    Click image for larger version Name: General Specifications 1.gif Views: 1 Size: 26.6 KB ID: 424753 Click image for larger version Name: General Specifications 2.gif Views: 1 Size: 24.4 KB ID: 424754

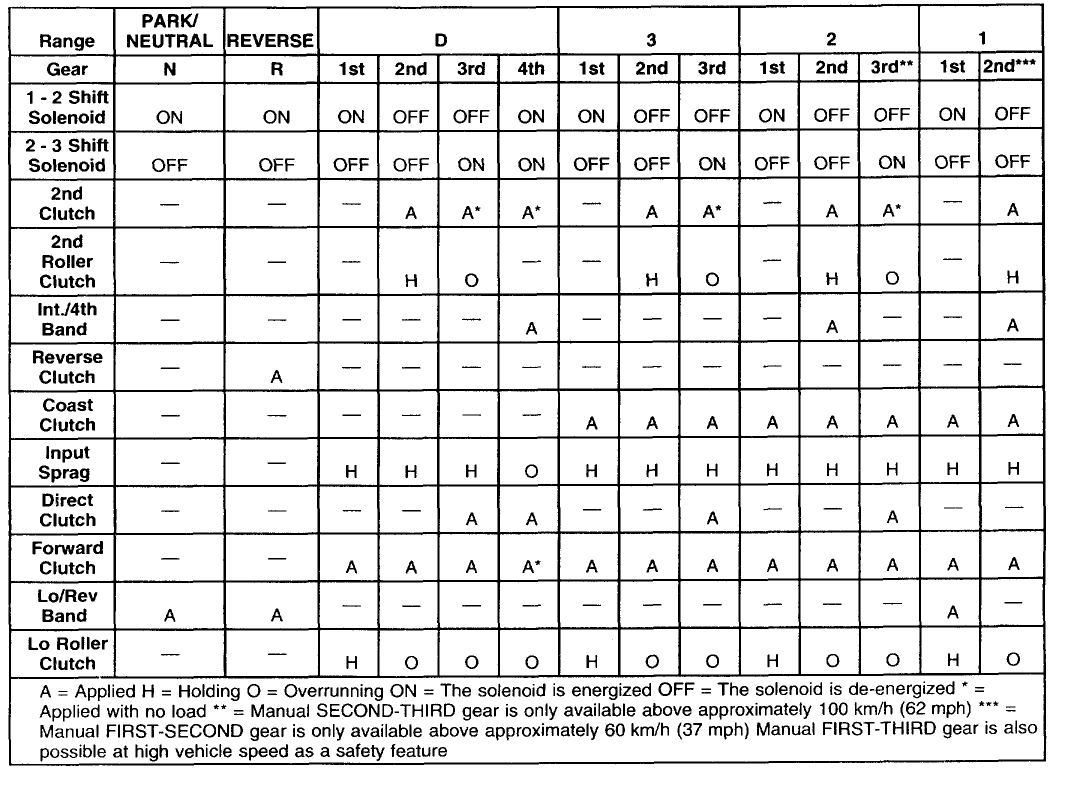

    Range Reference
    Click image for larger version Name: Range Reference.gif Views: 1 Size: 47.9 KB ID: 424755


    Shift Solenoid Valve State and Gear Ratio
    Click image for larger version Name: Shift Solenoid Valve State and Gear Ratio.gif Views: 1 Size: 6.4 KB ID: 424757

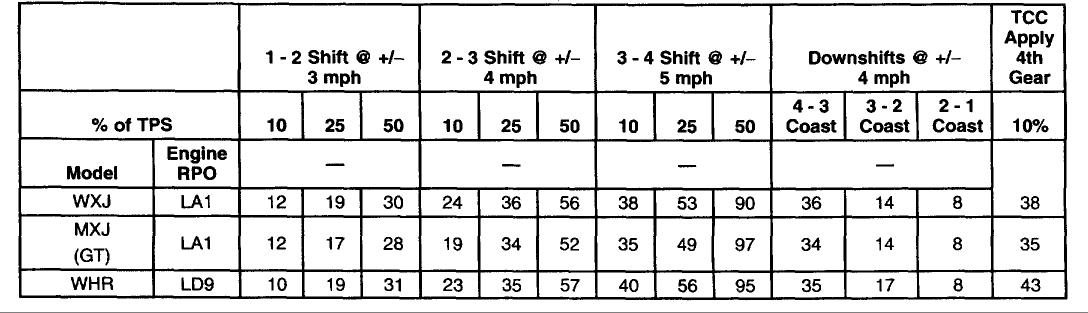

    Shift Speed
    Click image for larger version Name: Shift Speed.gif Views: 1 Size: 18.6 KB ID: 424758


    Flex Plate A/T
    • Flywheel to Torque Converter - 46 ft.lb.
    • Engine Flywheel Bolt - 52 ft.lb.

    Fluid Pan A/T
    • Oil Pan to Case - 124 in.lb.
    • Bottom Pan to Case [M6x1.0x19.0 (Qty.12)] - 106 in.lb.

    Capacity Specs
    • Pan Removal and Replacement - 6.9qt (US)
    • Overhaul - 9.5qt (US)
    • Dry - 12.9qt (US)
    Note: Recheck fluid level after filling system
    Tags: None
    • geldartb
      #4
      geldartb commented
      08-19-2010, 02:09 PM
      Editing a comment
      that's good i was just thinking of the people that don't have high screen resolution.
    • mfuller
      #5
      mfuller commented
      08-19-2010, 02:10 PM
      Editing a comment
      Please note that the table of available ratios has a typo - a 35/35 chain with a 3.05 Final Drive equals a 3.05 Effective (Overall), not 3.42. It's a GM typo that even shows up in my service manual.
    • hankjr40
      #6
      hankjr40 commented
      05-17-2013, 09:17 AM
      Editing a comment
      Does anyone have a diagram of where the checkballs go in a 4T60E ? I have a 1995 Buick Riviera and Im replacing the valve body with a updated one and have never been inside a transmission before and I hear these check balls can fall out easily
