  • V5 A/C compressor tear down / re-seal...

    Pictures of tear down and re-seal of Harrison V5 air conditioning compressor. These are very common on the 60°V6 engines. They are very costly as a re-manufactured unit. The parts to re-seal them are about $30.

    I did this write-up for another forum but figured it would have interest here.

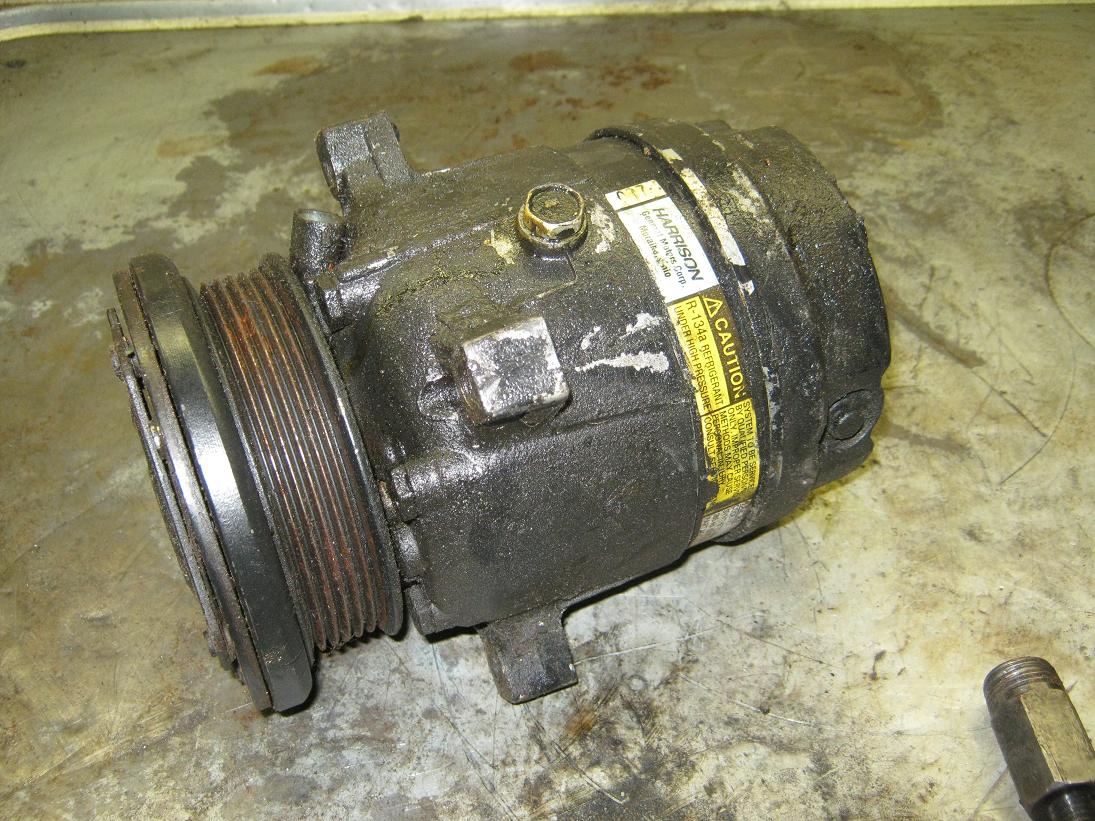

    I started with this unit. I had it on my 1972 Chevy Nova until it started leaking around the housing o-rings. It still cooled fine, it would just lose freon over about a 2 month period. It will go on a 2.8 carburetor engine in an older a-body car. I will be changing the pulley to a vee-belt pulley.
    Click image for larger version Name: V5_d&a_ (0).jpg Views: 1 Size: 196.3 KB ID: 424799

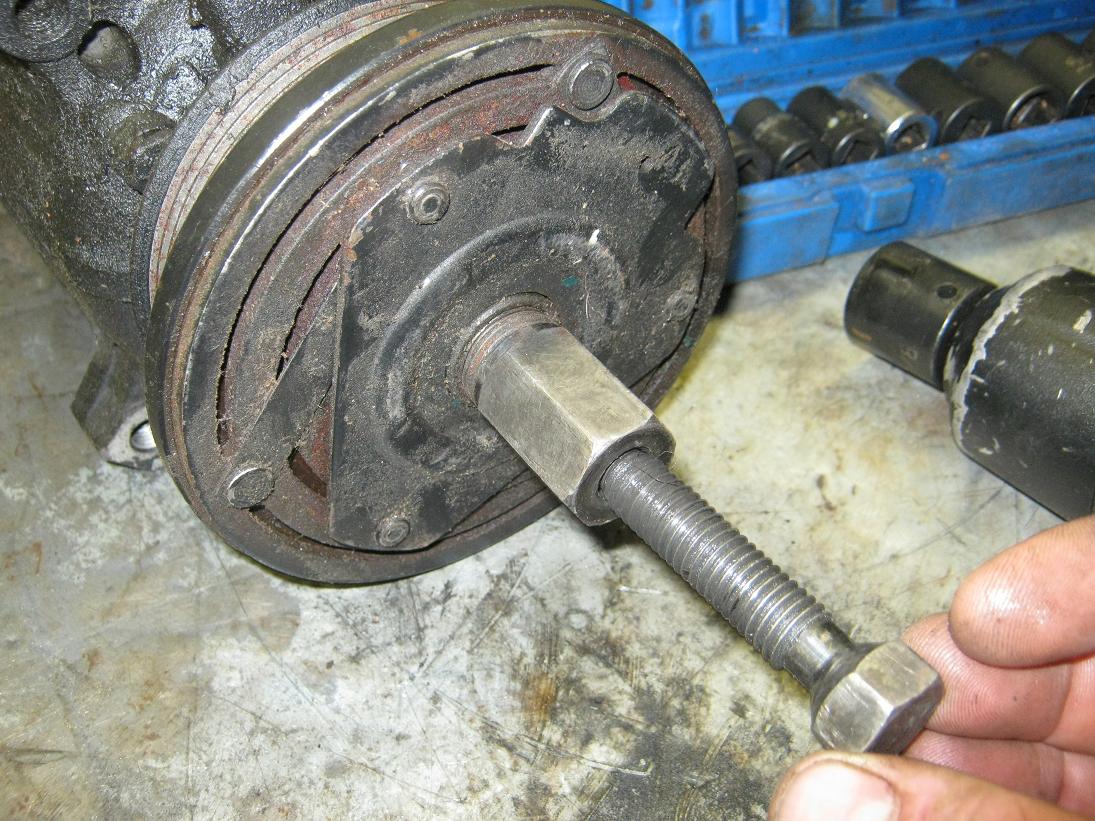

    First, remove shaft nut and install compressor clutch hub puller.
    Click image for larger version Name: V5_d&a_ (1).jpg Views: 1 Size: 193.3 KB ID: 424800

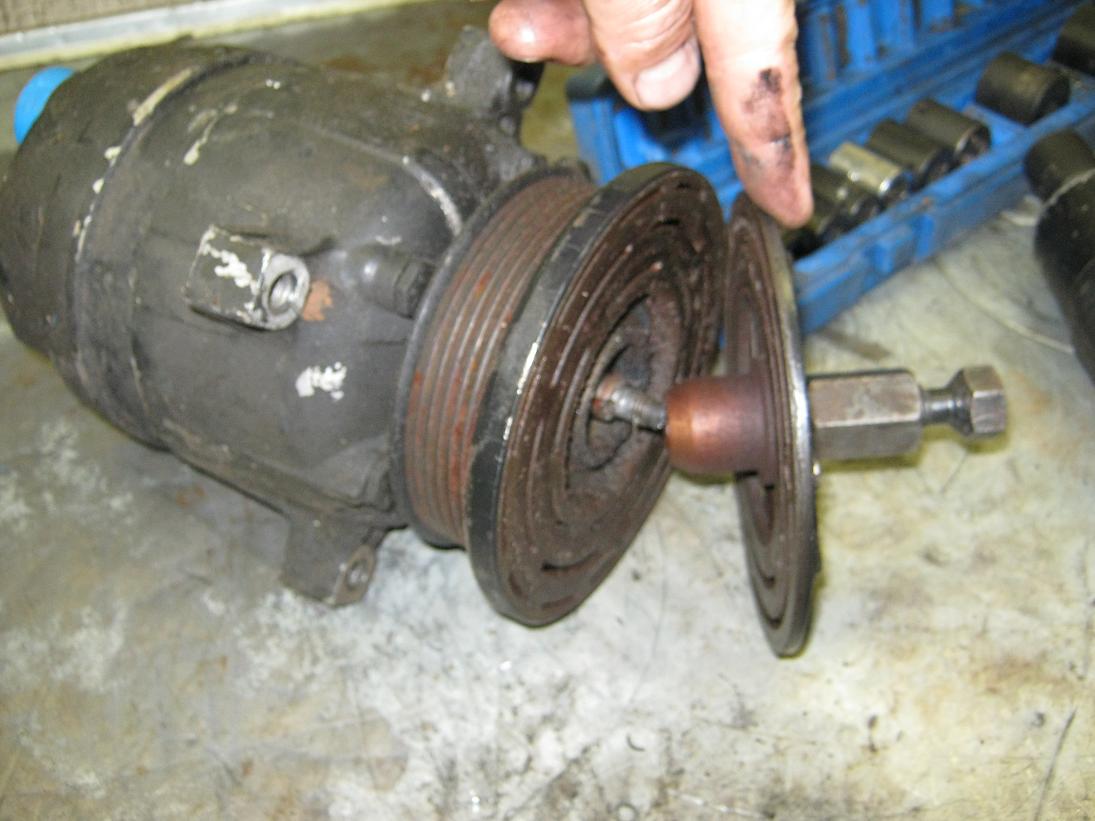

    Remove clutch hub, making sure not to lose the key!
    Click image for larger version Name: V5_d&a_ (2).jpg Views: 1 Size: 104.2 KB ID: 424801

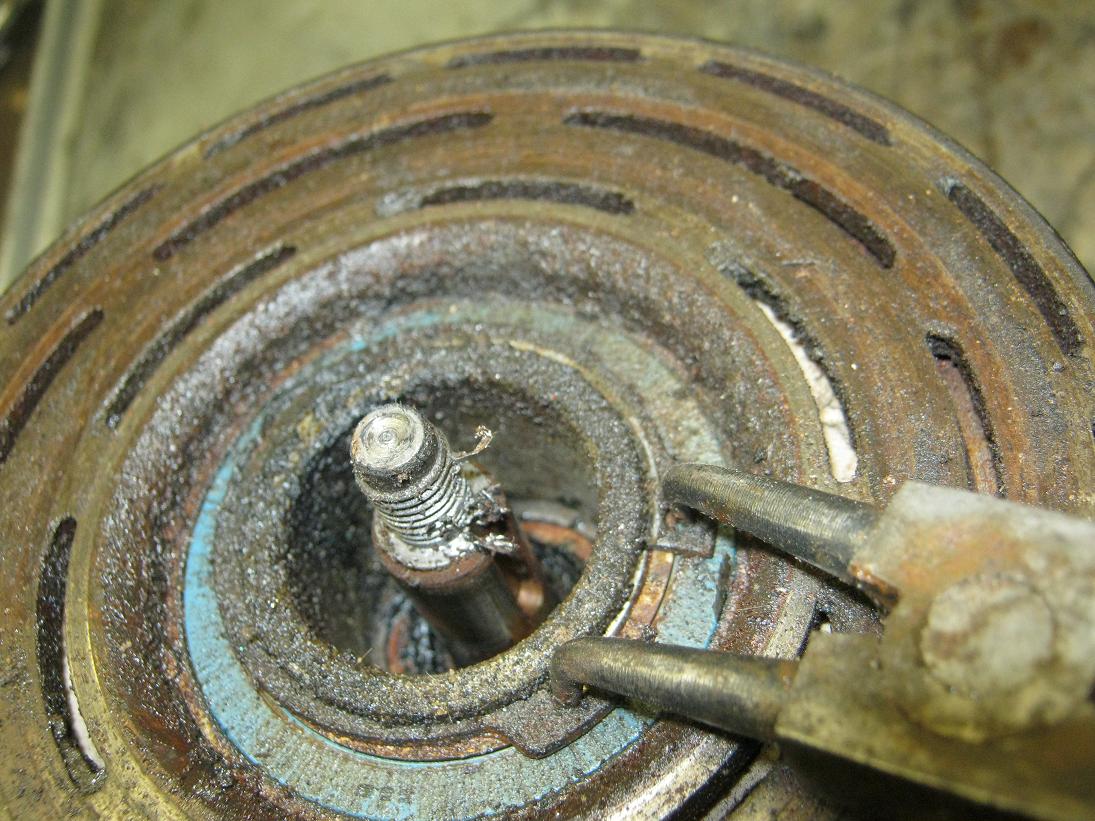

    Remove the snap ring that retains the pulley to the compressor.
    Click image for larger version Name: V5_d&a_ (4).jpg Views: 1 Size: 174.0 KB ID: 424802

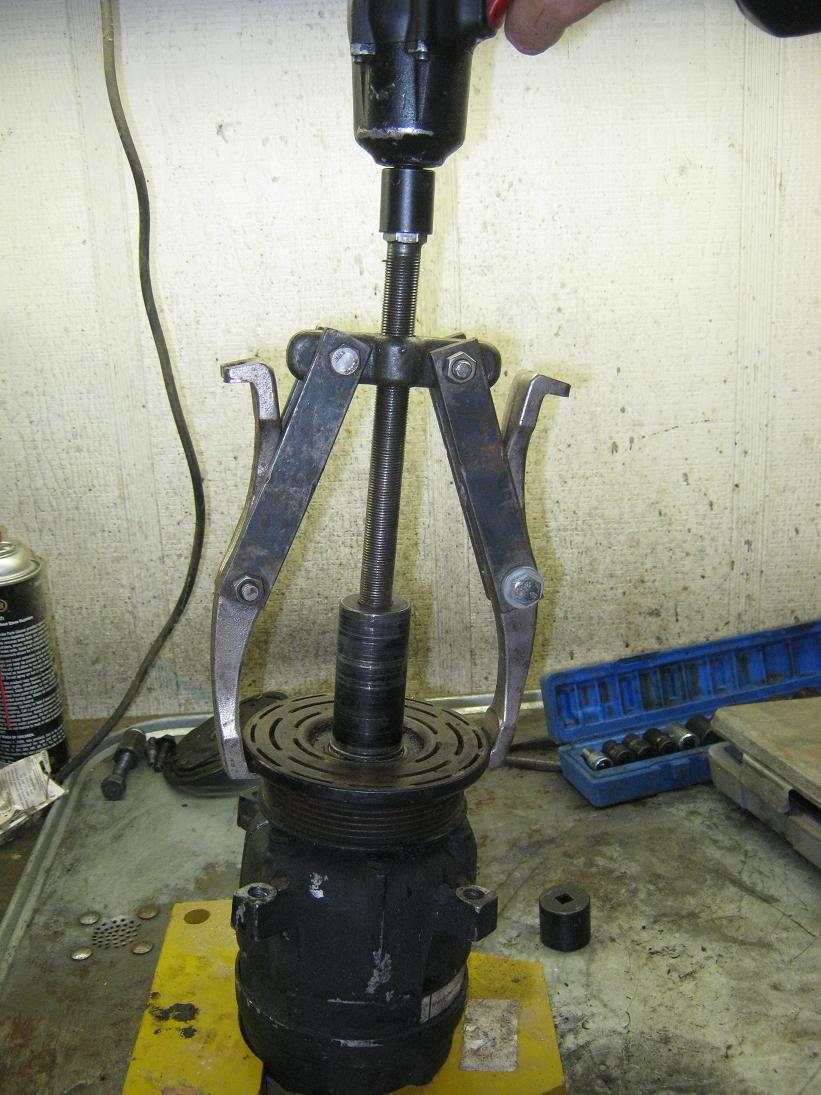

    Install a puller, making sure the puller bolt ONLY presses on the neck of the compressor, NOT the shaft. The socket sits on the neck, protecting the shaft.
    Click image for larger version Name: V5_d&a_ (5).jpg Views: 1 Size: 147.8 KB ID: 424803

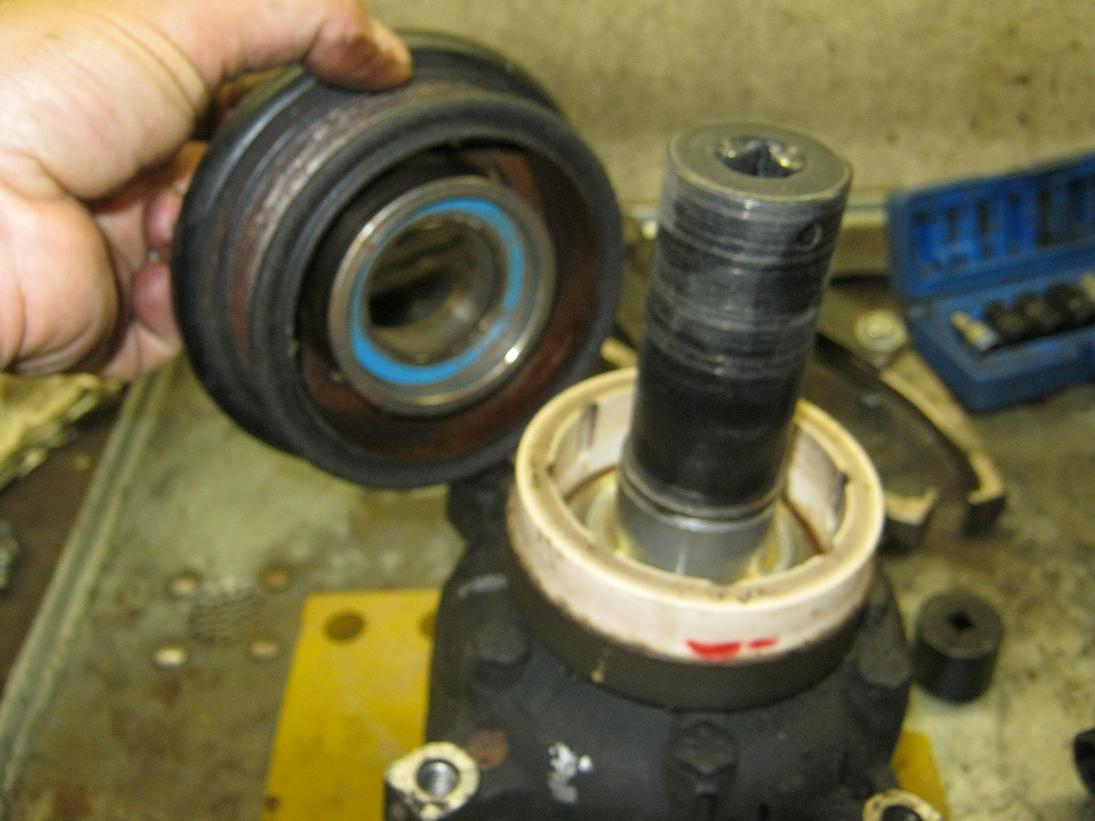

    The pulley off. I will be changing this out for a vee-belt pulley.
    Click image for larger version Name: V5_d&a_ (7).jpg Views: 1 Size: 96.2 KB ID: 424804

    Page 2 →
    Tags: None
    • Tbay99Venture
      #5
      Tbay99Venture commented
      07-27-2011, 11:12 PM
      Editing a comment
      +10 on the problem aligning the pistons if they pop out. I did that once with a Sanden. My biggest problem comes back to keeping everything clean. He makes it look easy, for some of us that's 100% attention to keep things clean. I think 60degreesBelow0 mentioned some nitrogen flushing tips, maybe I'm confusing posts. That would be helpful to link from this.
    • bszopi
      #6
      bszopi commented
      07-29-2011, 06:57 PM
      Editing a comment
      Pics are now hosted here. Clicking on the pictures will show the full size version, if needed. I also split it up into multiple pages so make load time faster, as well as making it easier to follow.
    • davida1_hiwaay_net
      #7
      davida1_hiwaay_net commented
      05-17-2013, 01:37 PM
      Editing a comment
      Thanks for hosting the pictures here! My home computer has just a limited number of connections it can handle.
