  • LZ Wiring Pinouts

    This is from a 07 Saturn Aura, so it might differ a bit from others. I can add whatever needs to be added to this, just let me know.

    Click image for larger version

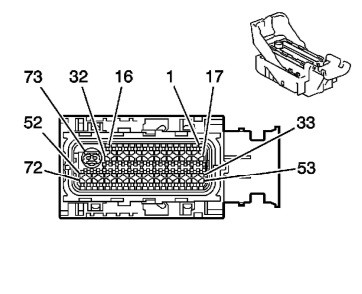

Name:	LZ_C1_Connector_View.jpg
Views:	153
Size:	25.3 KB
ID:	427312
    Click image for larger version

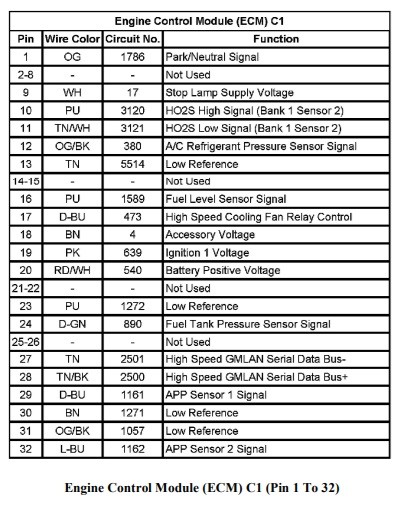

Name:	LZ_C1_Pin1to32.jpg
Views:	68
Size:	78.3 KB
ID:	427316

    Click image for larger version

Name:	LZ_C1_Pin33to73.jpg
Views:	69
Size:	98.8 KB
ID:	427315

    Click image for larger version

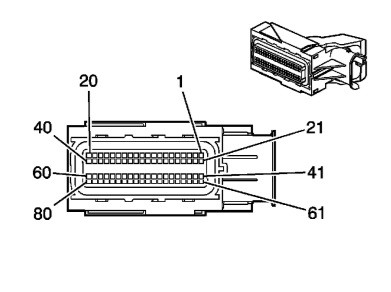

Name:	LZ_C2_Connector_View.jpg
Views:	68
Size:	21.7 KB
ID:	427313

    Click image for larger version

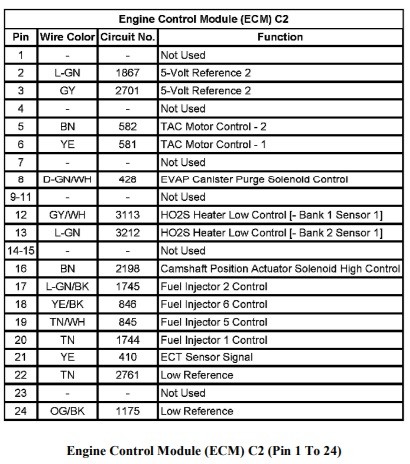

Name:	LZ_C2_Pin1to24.jpg
Views:	71
Size:	70.7 KB
ID:	427314

    Click image for larger version

Name:	LZ_C2_Pin25to78.jpg
Views:	66
Size:	130.3 KB
ID:	427317
